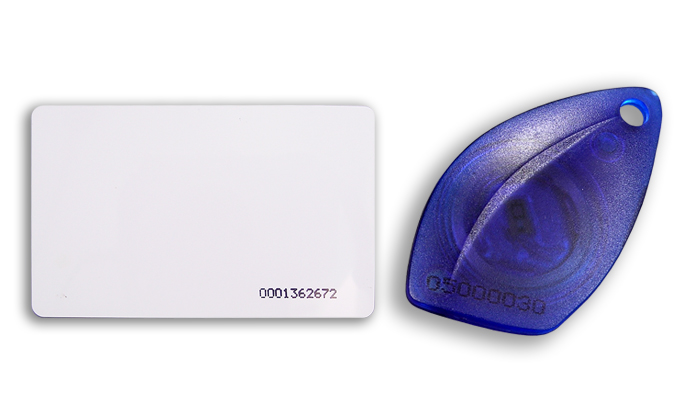

Proximity Cards & Key Tags

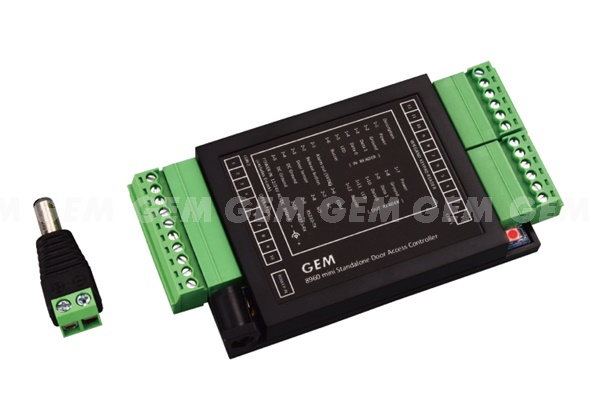

Mini Access Controls
Standard Features
◆ Compact size, easy to install
◆ Supports 1 IN reader and 1 OUT reader
◆ 500 card holder capacity
◆ 100 PIN codes, 1 to 6 digits
◆ Tamper lockout function
◆ Fail-secure or Fail-safe capable
◆ Request to Exit input, door sensor input, and alarm output
◆ Supports any brand of keypad/reader with Wiegand output
Specifications
◆ Voltage: 12 to 24 VDC/AC
◆ Current: 100mA
◆ Keypad Output: 32-bit Wiegand
◆ Temperature: 14°F to 149°F (-10°C to +65°C)
◆ Humidity: 0% to 95% Non-condensing
◆ Dimensions: 54 W x 86 H x 12 D mm
Access Modes
◆ Card or Code, Card only, Code only

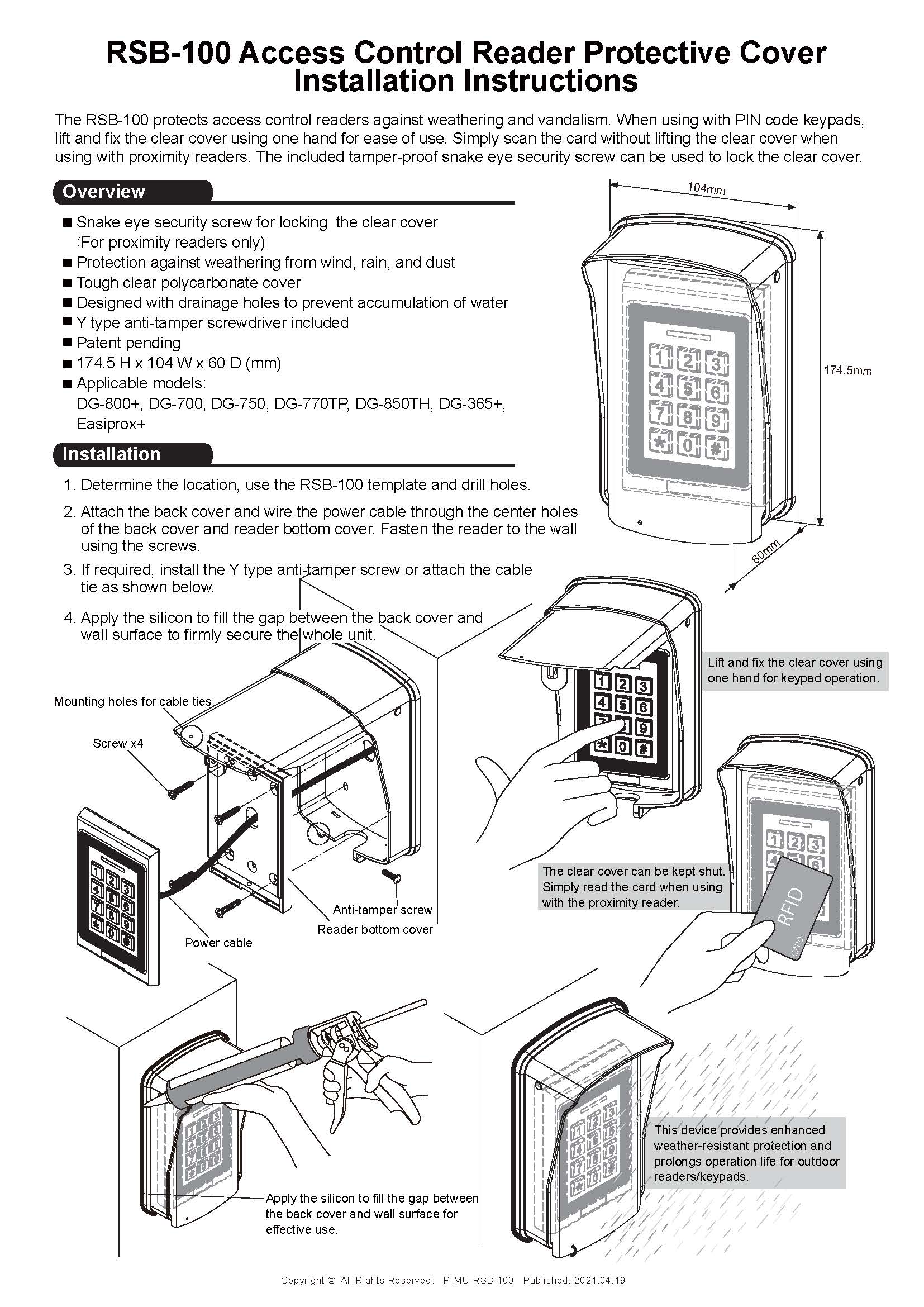

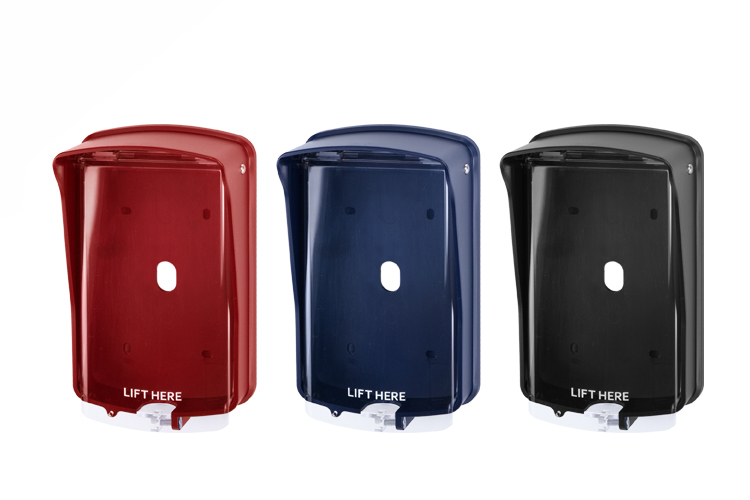

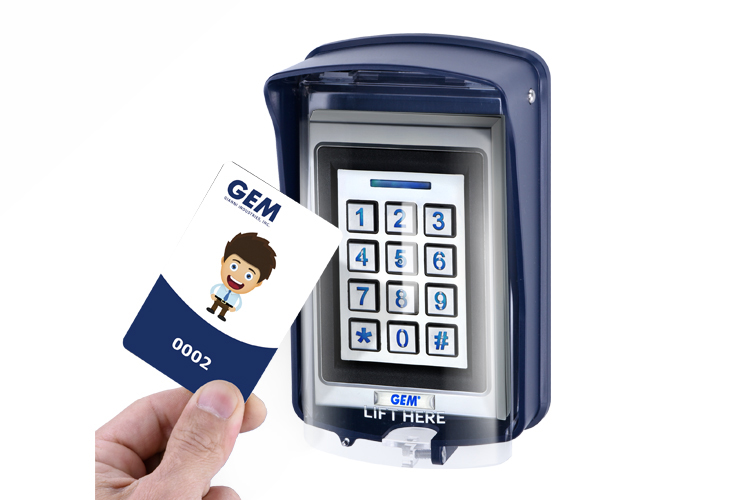

Protective Covers

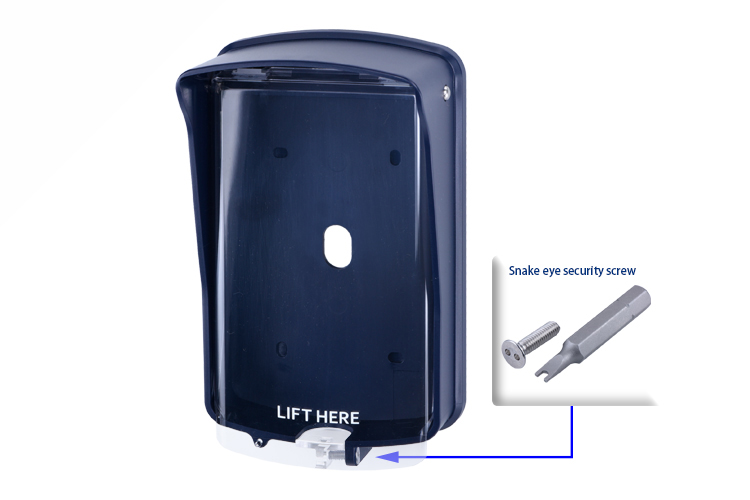

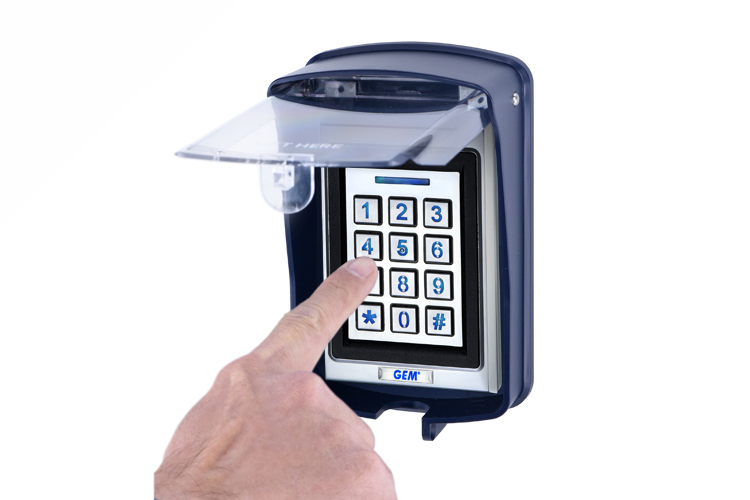

The RSB-100 cover protects access control readers against weathering and vandalism. RSB-100 has a patent pending for approval. When using the RSB-100 with keypads, lift the cover to enter PIN codes. When using with proximity readers, simply scan the card without lifting the cover. Snake eye security screw can be used to lock the protective cover and protects the readers from vandalism.
Features
◆ Protects slim profile keypads/readers against weathering from wind, dust and rain
◆ Security screw for locking the cover to protect against vandalism (for reader models only)
◆ Covers made with tough polycarbonate material
◆ Designed with drainage holes to prevent accumulation of water
◆ Snake eye screw and Y type anti-tamper screwdriver included
◆ Patent pending
◆ 174.5 H x 104 W x 60 D (mm)
Applicable models are as followed:
◆ DG-800+, DG-700, DG-750, DG-770TP, DG-850TH, DG-365+, Easiprox+
