Standard Features

  • Weather resistant and vandal housing
  • EM+Mifare, EM or Mifare technologies
  • 2000 cards capability
  • 200 users, 1~6 digit PIN codes
  • Keypad tamper lockout
  • Red, green and yellow LED for status and programming feedback
  • Configurable audible annunciator: Keypad Entry,Door Ajar, Tamper Lockout, Keypad Active
  • Fail-secure or Fail-safe capable
  • Request to Exit, Alarm, Door sensor outputs
  • 3 operation functions
  • Manager System software included
  • Optional PROX keypads and readers

PROX Only

  • 3 User Modes:
  • PIN or Card
  • Card Only
  • Card and PIN

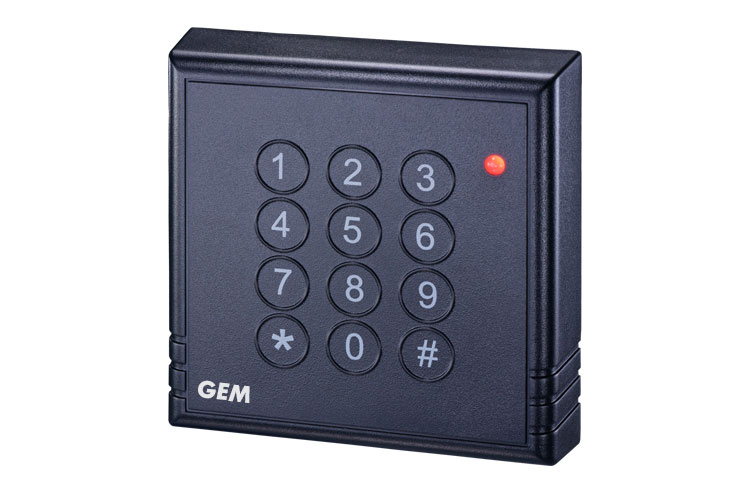

DG-2100EU

  • Voltage: 12 to 16 VDC
  • Current: Up to 80 mA
  • Alarm Output: 5VDC@25mADC
  • Relay: 12VDC@2ADC
  • Keypad Output: 32-bit Wiegand
  • Wiring: Terminal Block
  • Temperature: -10°C to +65°C (14°F to 149°F)
  • Humidity: 0% to 95% non-condensing
  • Color: Black
  • Dimensions: 86W x 86H x 20D mm
  • Descriptions:
    European size all-in-one standalone
    online PROX keypad and controller EM+Mifare

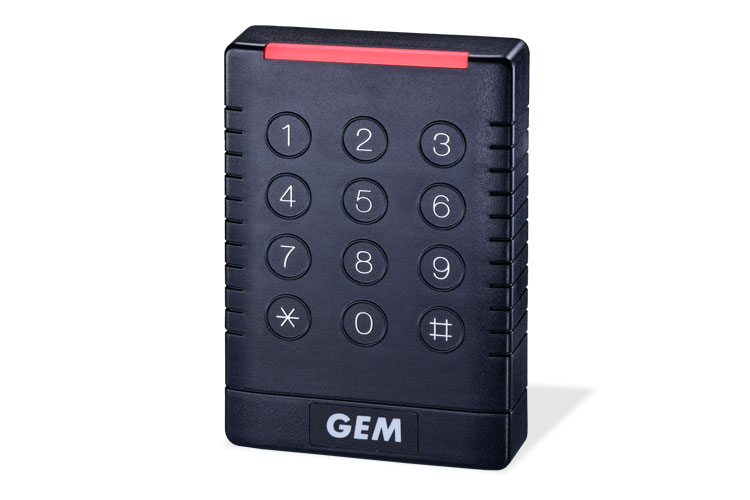

DG-2000US

  • Voltage: 12 to 16 VDC
  • Current: Up to 80 mA
  • Alarm Output: 5VDC@25mADC
  • Relay: 12VDC@2ADC
  • Keypad Output: 32-bit Wiegand
  • Wiring: Terminal Block
  • Temperature: -10°C to +65°C (14°F to 149°F)
  • Humidity: 0% to 95% non-condensing
  • Color: Black
  • Dimensions: 80W x 115H x 20D mm
  • Descriptions:
    ANSI size all-in-one standalone
    online PROX keypad and controller EM+Mifare

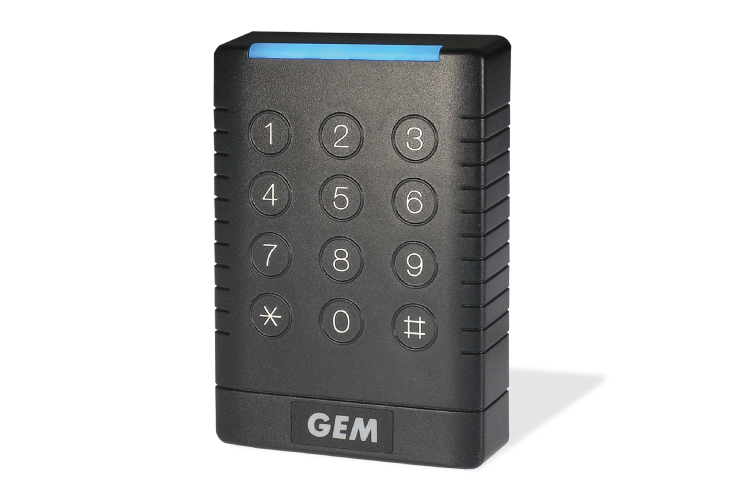

DG-2000K Series

ANSI size,
PROX keypad
EM 125KHz/Mifare 13.56MHz

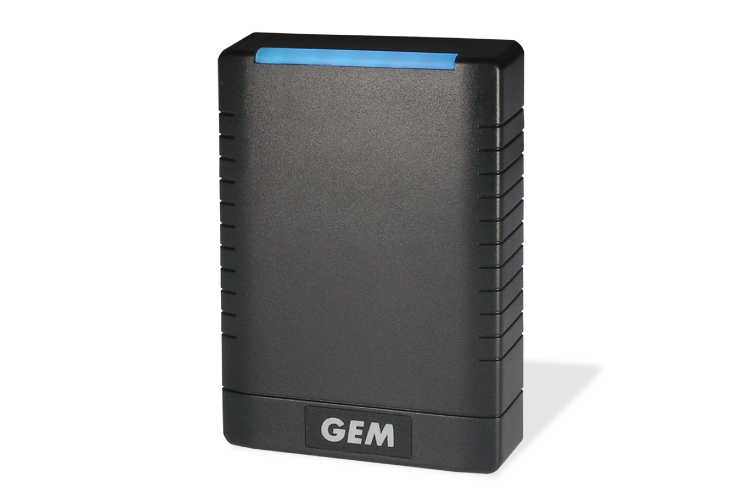

DG-2000R Series

ANSI size,
PROX reader EM125KHz/Mifare 13.56MHz

DG-2000SK Series

Slim/Narrow size,
PROX keypad EM125KHz/Mifare 13.56MHz

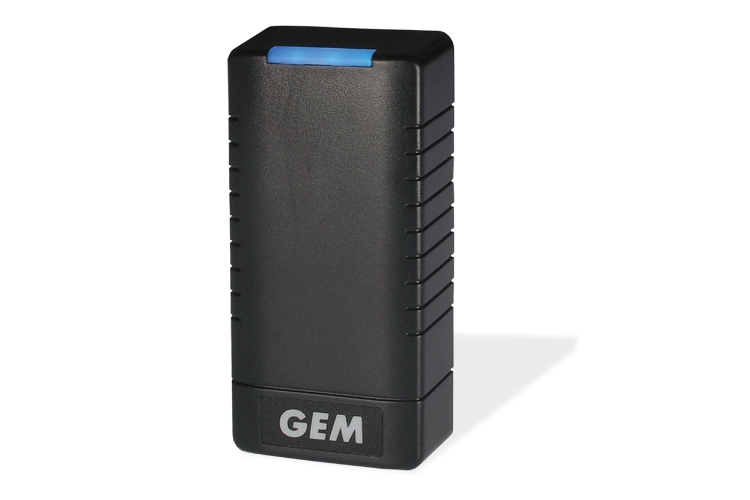

DG-2000SR Series

Slim/ Narrow size,
PROX keypad EM12KHz/Mifare 13.56MHz,

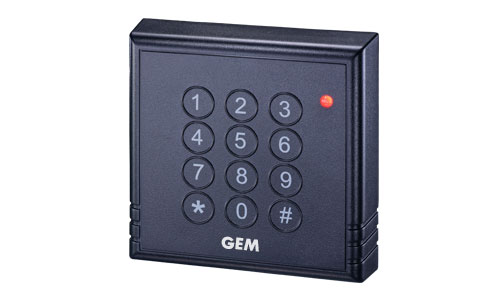

DG-2100K Series

European size,
PROX keypad EM125KHz/Mifare 13.56MHz

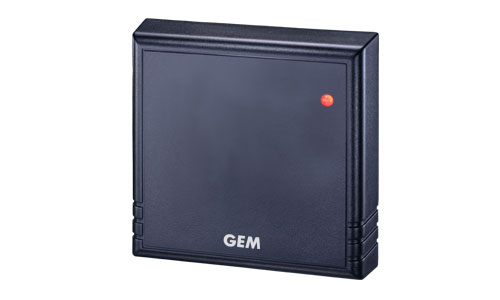

DG-2100R Series

European size,
PROX keypad EM125KHz/Mifare 13.56MHz
