Standard Features

  • Weather resistant and vandal housing
  • EM and Mifare technologies
  • 500 cards capability
  • 100 users, 1~6 digit PIN codes
  • Keypad tamper lockout
  • Red, green and yellow LED for status and programming feedback
  • Configurable audible annunciator: Keypad Entry,Door Ajar, Tamper Lockout, Keypad Active
  • Fail-secure or Fail-safe capable
  • Request to Exit, Alarm, Door sensor outputs

PROX Only

  • 3 User Modes:
  • PIN or Card
  • Card Only
  • Card and PIN

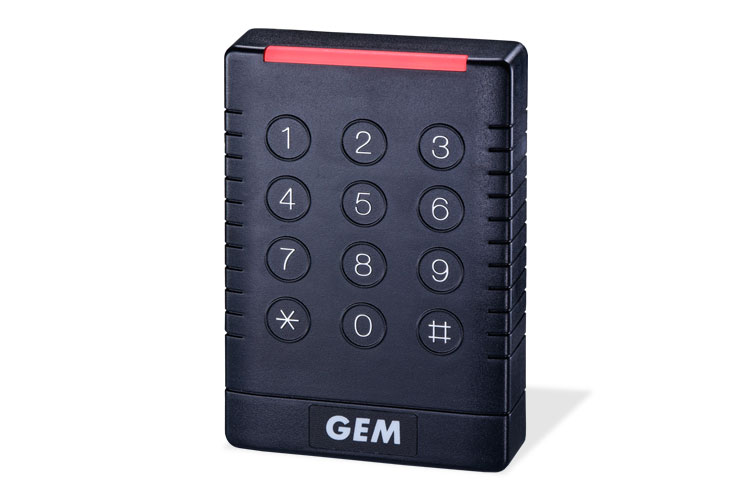

DG-ea100

  • Voltage: 12 to 24VDC/AC@2ADC
  • Current: Up to 80mA
  • Alarm Output: 5VDC@25mADC
  • Relay: 12VDC@2ADC
  • Keypad Output: 32bit Wiegand
  • Wiring: 6" Pigtail
  • Temperature: 14°F~149°F (-10°C~+65°C)
  • Humidity: 0% to 95% non-condensing
  • Color: Black
  • Descriptions:
    ANSI size Easy version standalone PROX keypad and controller EM+Mifare,
    80Wx115Hx20D mm

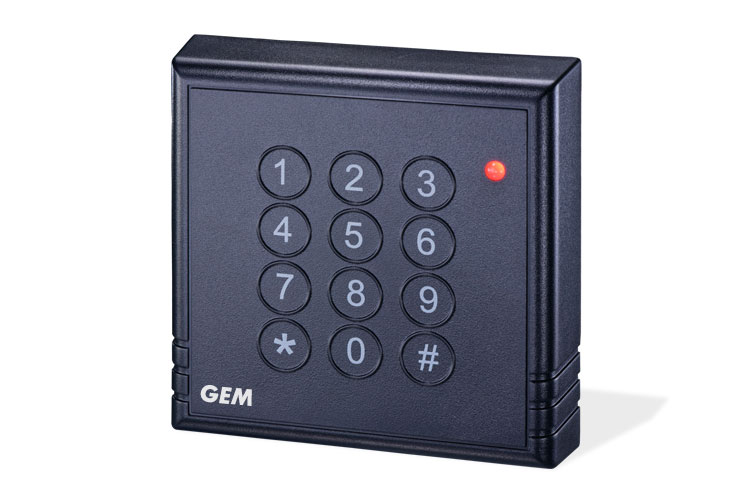

DG-ea200

  • Voltage: 12 to 24VDC/AC@2ADC
  • Current: Up to 80mA
  • Alarm Output: 5VDC@25mADC
  • Relay: 12VDC@2ADC
  • Keypad Output: 32bit Wiegand
  • Wiring: 6" Pigtail
  • Temperature: 14°F~149°F (-10°C~+65°C)
  • Humidity: 0% to 95% non-condensing
  • Color: Black
  • Descriptions:
    European size Easy version standalone PROX keypad and controller EM+Mifare,
    86Wx86Hx20D mm

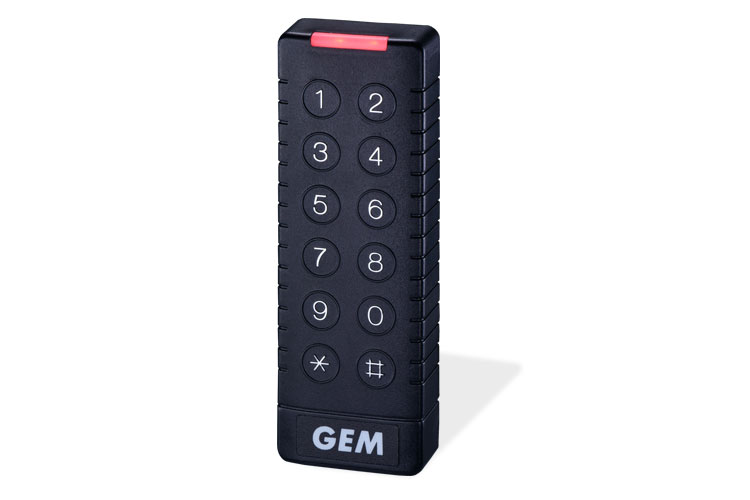

DG-ea300

  • Voltage: 12 to 24VDC/AC@2ADC
  • Current: Up to 80mA
  • Alarm Output: 5VDC@25mADC
  • Relay: 12VDC@2ADC
  • Keypad Output: 32bit Wiegand
  • Wiring: 6" Pigtail
  • Temperature: 14°F~149°F (-10°C~+65°C)
  • Humidity: 0% to 95% non-condensing
  • Color: Black
  • Descriptions:
    Slim / Narrow size Easy version standalone PROX keypad and controller EM+Mifare,
    140Wx45Hx20mm
