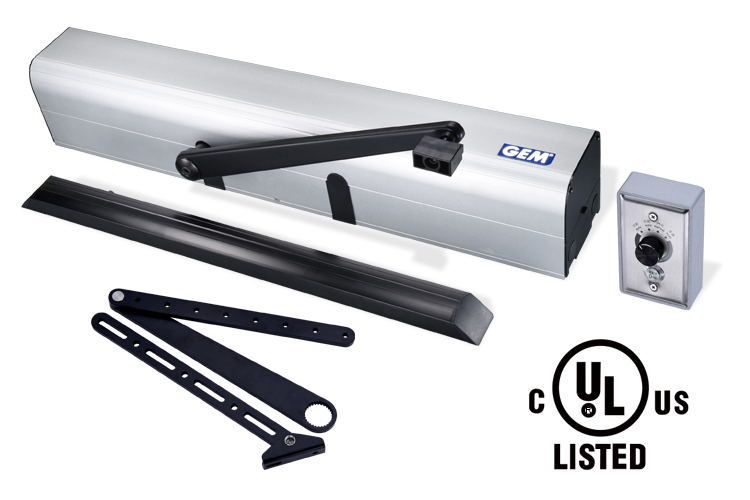

AD500 Automatic Door Operator
The AD500 automatic swing door operator offers the most simple and convenient solution for residential, commercial, or institutional applications where opening doors manually would be difficult or laborious. Ideal for environments where doors must be opened without contact for hygiene reasons or as disability entrance solutions, such as restrooms, hospitals, labs, or healthcare facilities.
Features
◆ Universal Input Voltage
◆ Any Swing Door Action
◆ Access Control Interface

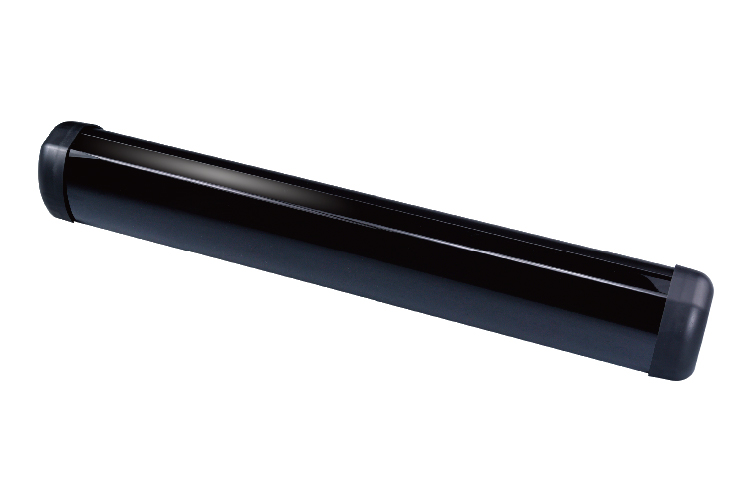

◆ Safety Sensor
◆ Selectable Hold-Open Time
◆ High Accuracy
◆ Quiet & Reliable
◆ Wide Applications
◆ Adjustable Operating Speed
◆ Backup Battery
◆ 4 Operation Modes
◆ Remote Control
Specifications
◆ Power Input: 100-240V AC +10/-15%, 50/60 Hz
◆ Motor: 60 VDC, 2A Max
◆ Current Draw: 3.2A max 77 W., 0.21 - 0.45 A average (motor)
◆ Adjustment: Opening Speed, Closing Speed, Backcheck/Latchcheck Position, Hold-Open Time
◆ Standard Control Inputs: Activation, Safety Device Input, 24 VDC Battery Input
◆ Switch Functions: DIP Switches: Automatic, Manual, Power On/Off switch

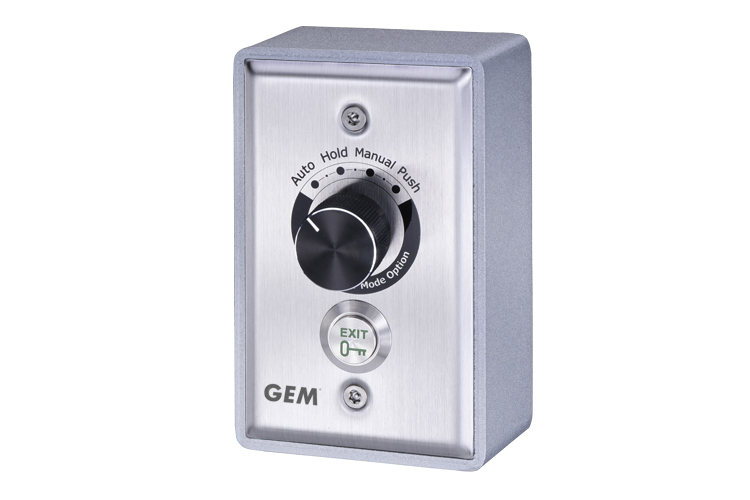

◆ Operation Controller:
- Functions: Automatic, Manual, Push & Go, Hold-Open, Activation
- Dimensions: 79 (W) x 125 (H) x 45 (D) mm (Surface); 79 (W) x 125 (H) x 4 (D) mm (Mortise)
- Included: Stainless steel faceplate, 3 mm cable, tamper resistant security screws, back box
◆ Door Specs
- Maximum Opening Angle: 80~120°
- Door Width: 750~1200mm
- Door Height: 110 1/4” (280 cm)
- Door Weight: 50 ~150 kg
