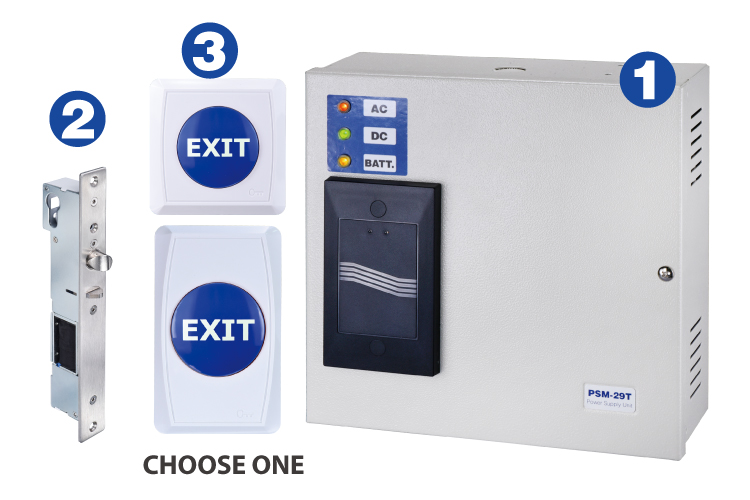

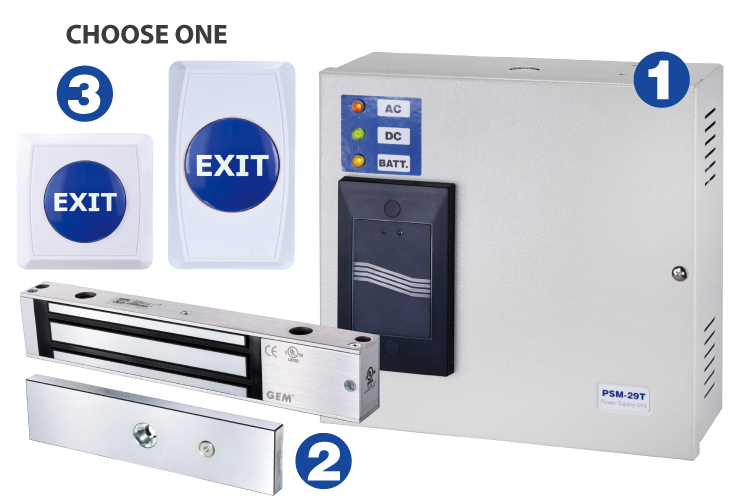

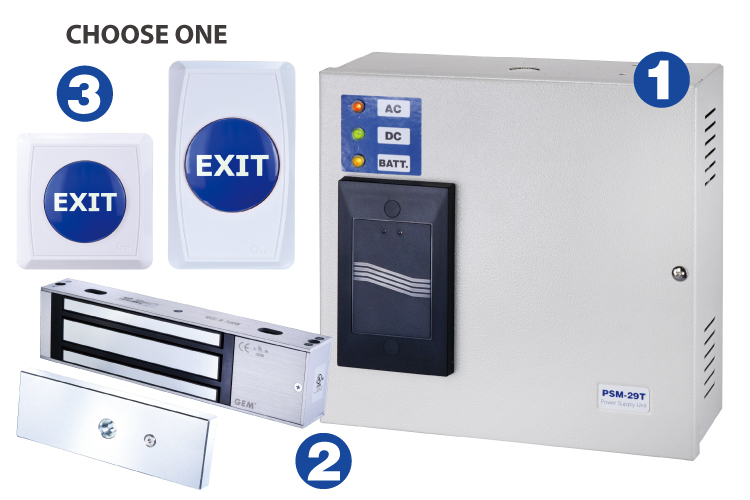

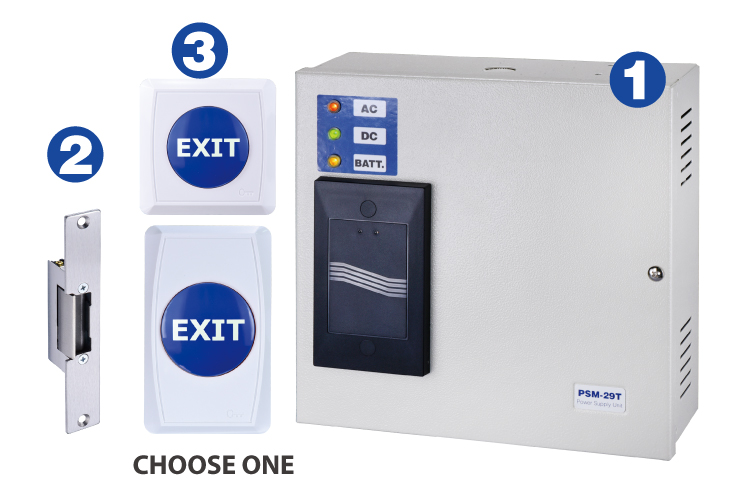

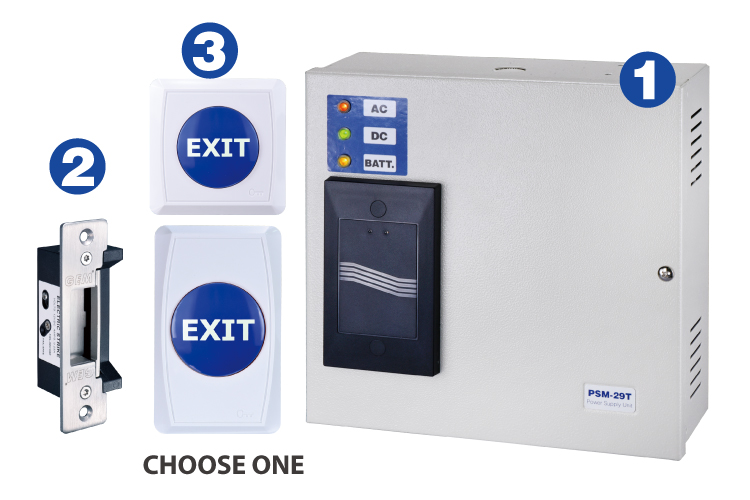

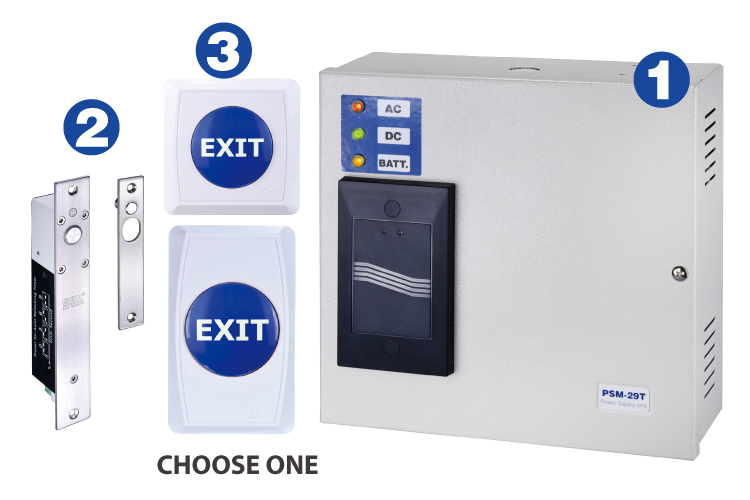

Single Door Access Kits
Features
◆ Access control via Bluetooth smartphone
◆ 1 Master, 196 Users
◆ Built-in anti-tailgate function
◆ Bluetooth range up to 50 meters
◆ Door held open alarm
◆ Uninterruptible power supply for additional security
◆ Field selectable switch for fail-safe or fail-secure electrified locks
◆ Ideal for single door access control application
Unlocking Door from Smartphone
◆ Manual Operation: After registration is completed, press the E button on the main page to unlock the door.
◆ Automatic Access Operation: After registration is completed, set proximity read range, and then turn on automatic access function on the main page for hands-free access.
Specifications
◆ Dimensions: 8 1/4" x 8 11/16" x 3 1/8" (210 x 220 x 80 mm)

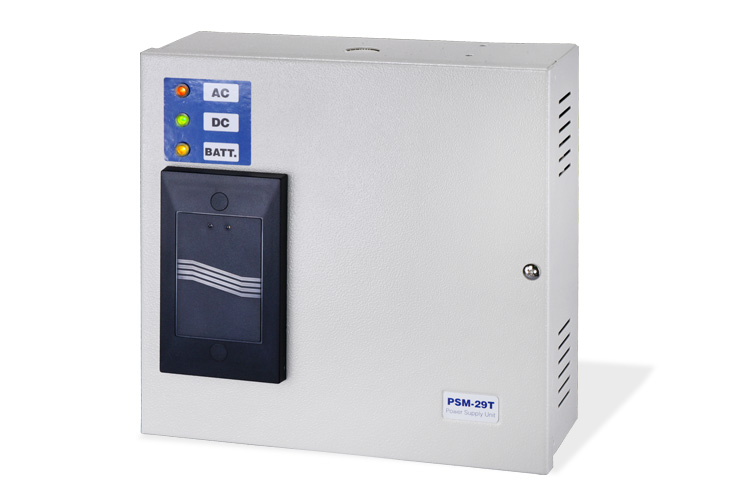

◆ LED status indicators:
- AC light (Red): AC voltage input
- DC light (Green): DC / battery voltage output
- Battery light (Yellow): Battery voltage below 10 VDC
