Functions

  • Bolt status sensor output
  • Door position status output
  • Relock time delay
  • Buzzer alarm (Door ajar alarm)
  • Push button trigger input
  • Positioning bolt (For EB262N)

Patents, Approvals, and Listings

  • CE: EC262504-01



EB180

  • Voltage: 12 or 24VDC
  • Current Draw:
    Pull in:0.9Amp/12VDC, Holding:0.15Amp/12VDC
    Pull in:0.4Amp/24VDC, Holding:0.1Amp/24VDC
  • Functions: BSS, Relock Timer

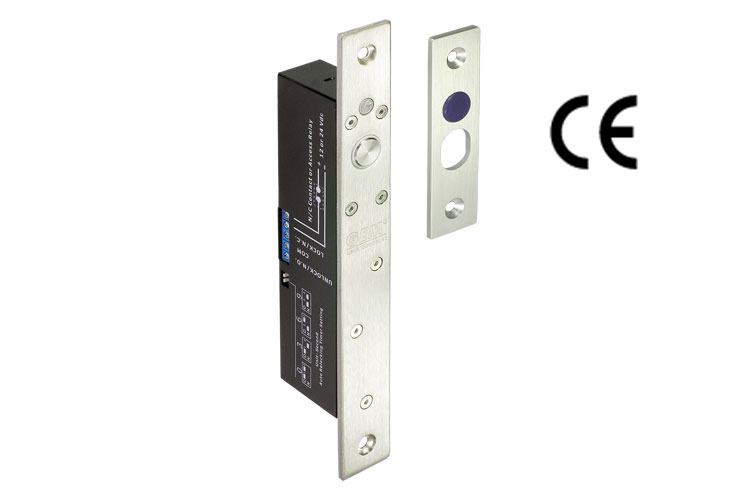

EB185

  • Voltage: 12 or 24VDC
  • Current Draw:
    Pull in:0.9Amp/12VDC, Holding:0.15Amp/12VDC
    Pull in:0.4Amp/24VDC, Holding:0.1Amp/24VDC
  • Functions: BSS, Relock Timer

EB190TG/EB195TG

  • Voltage: 12 or 24VDC
  • Current Draw:
    Pull in:0.9Amp/12VDC, Holding:0.15Amp/12VDC
    Pull in:0.45Amp/24VDC, Holding:0.1Amp/24VDC
  • Functions: BSS, DPS, Relock Timer, Trigger Push Button

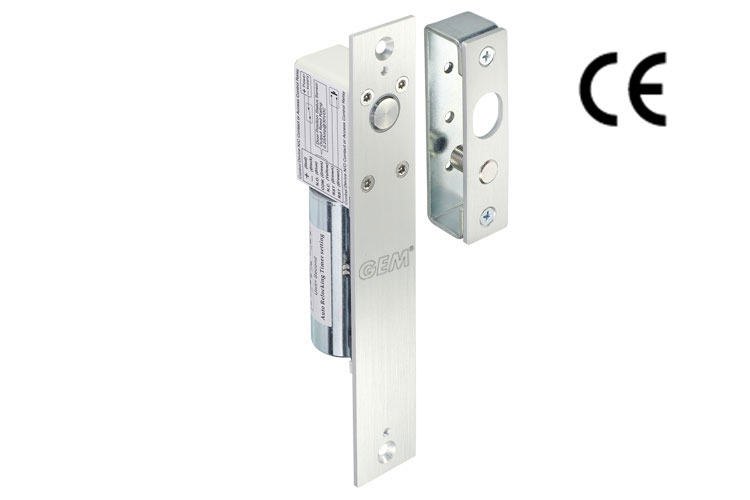

EB200NLW

  • Voltage: 12VDC
  • Current Draw: Pull in:0.9Amp, Holding:0.3Amp
  • Functions: DPS, Relock Timer

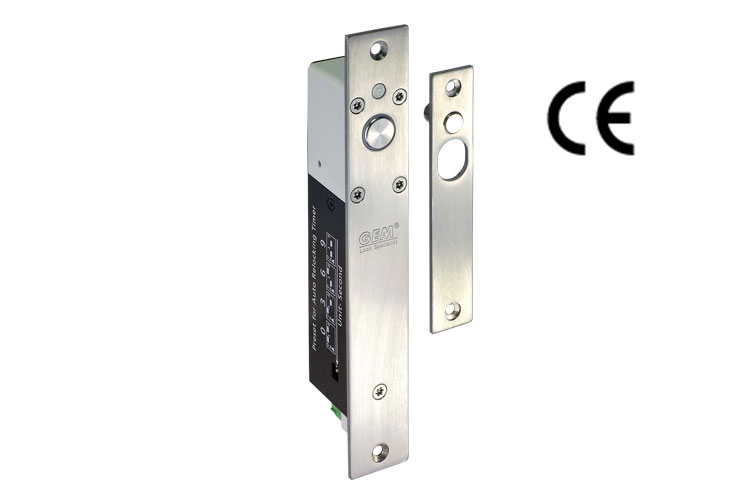

EB220N

  • Voltage: 12VDC
  • Current Draw: Pull in:0.9Amp, Holding:0.3Amp
  • Functions: BSS, DPS, Relock Timer
  • Standard Options: DPS
  • Optional Brackets:

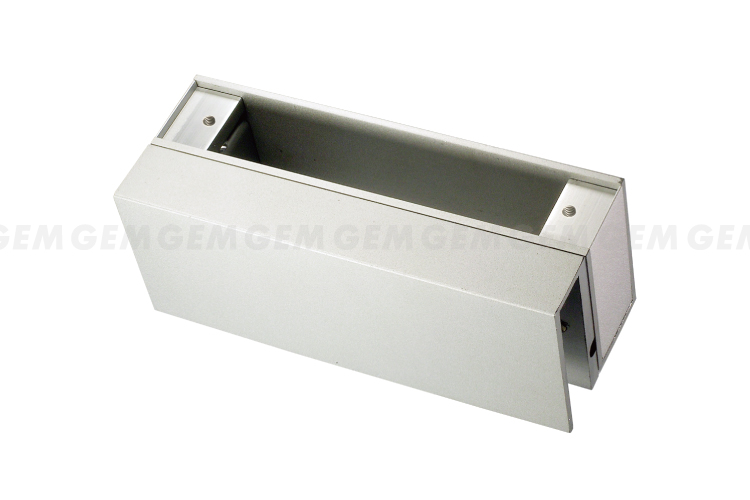

    UBK-262N
    (For semi-frameless glass doors)

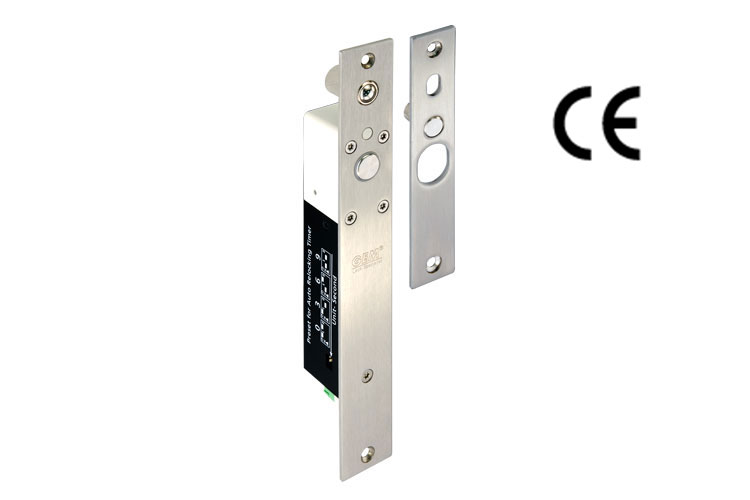

EB262N

  • Voltage: 12VDC
  • Current Draw: Pull in:0.9Amp, Holding:0.3Amp
  • Functions: BSS, DPS, Relock Timer
  • Standard Options: DPS & Buzzer
  • Optional Brackets:
    UBK-262N
    (For semi-frameless glass doors)
