EB160 Electric Dropbolts

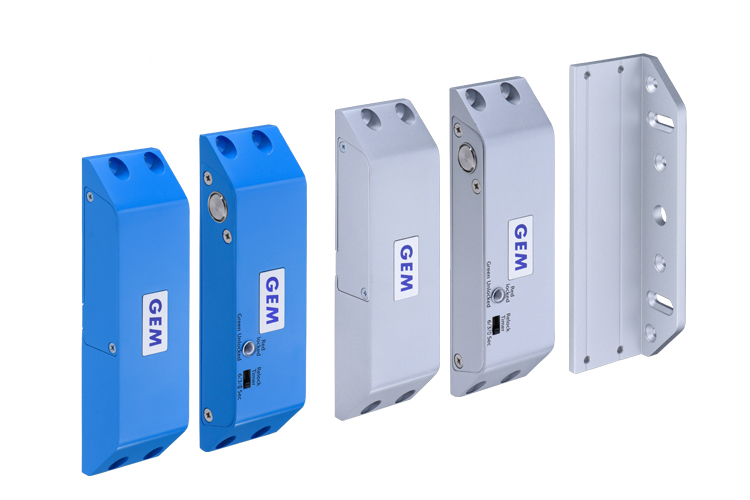

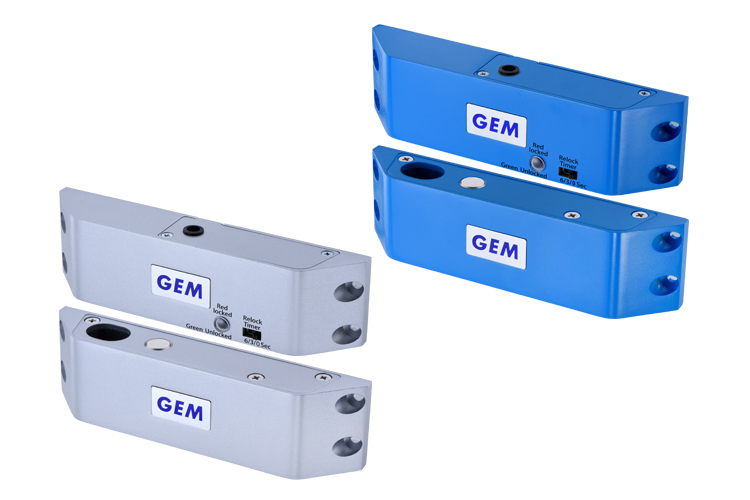

The EB160 series fail-safe electric dropbolt can be mounted horizontally or vertically. It is designed for use on double action doors and is ideal for applications where electromagnets or electric strikes are impractical.

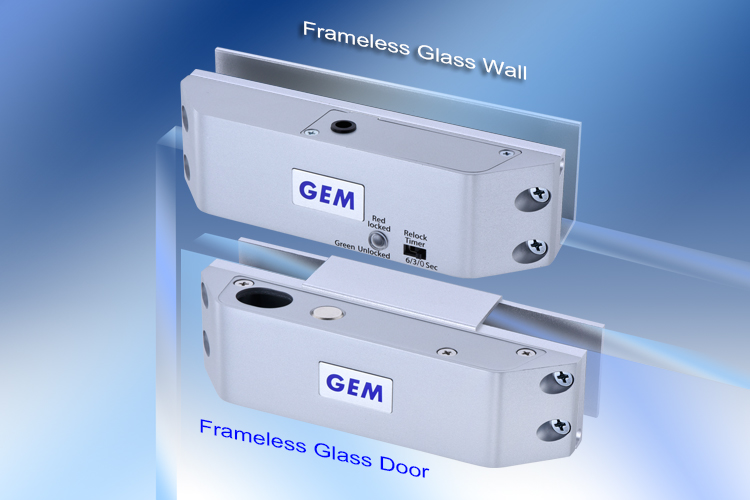

Surface mount models are also available for hollow metal door or frameless glass door applications.

Features

◆ Horizontal or vertical installation
◆ For double or single action doors
◆ Energy saving design
◆ Intelligent electronics
◆ Vandal resistant circuit design
◆ Relock time delay (Selectable from 0,3,6 seconds)
◆ Zinc alloy body construction

Specification

◆ Mode: Fail-Safe
◆ Operating Voltage: 12 / 24 VDC
◆ Operating Temperature: -10°C~+49°C
◆ Humidity: 0~85% non-condensing
◆ Current Draw
- Pull in:0.90Amps ; Holding:0.15Amps / 12VDC
- Pull in:0.45Amps ; Holding:0.10Amps / 24VDC
◆ Door Postion Status Output Rating : 0.25Amps / 30VDC
◆ Relock time delay (Selectable from 0, 3, 6 seconds)
◆ Dropbolt throw: 16 mm

EB185S/EB195TGS Electric Dropbolts

The Fail-Safe series electric dropbolt can be mounted horizontally or vertically and provides various functions. It is designed for use on double action doors (or single inswing/outswing doors) and ideal for applications where an electromganetic lock or electric strike is impractical. Surface mount models are also available for hollow metal door or frameless glass door applications.

Features

◆ Fail-safe (Power to lock)
◆ Vandal resistant - The lock cannot be deceived by slipping a metal object between lock and the srtike plate
◆ Built-in bolt status sensor (both) and door position sensor (EB195TGS only)
◆ Relock time delay
◆ Surface Mount

Specification

◆ Mode: Fail-Safe
◆ Operating Voltage: 12/24 VDC
◆ Operating Temperature: -10°C~+49°C
◆ Humidity: 0~85% non-condensing
◆ Current Draw
- Pull in: 0.9A/12V; 0.45A/24V;
- Holding: 0.15A/12V; 0.1A/24V
◆ Door Position Status Output (EB195TGS only)
◆ Push Button Trigger Input (EB195TGS only)
◆ Bolt Status Sensor Output (Both)
◆ Relock Time Delay

Patents, Approvals, and Listings

◆ CE: EC262504-01

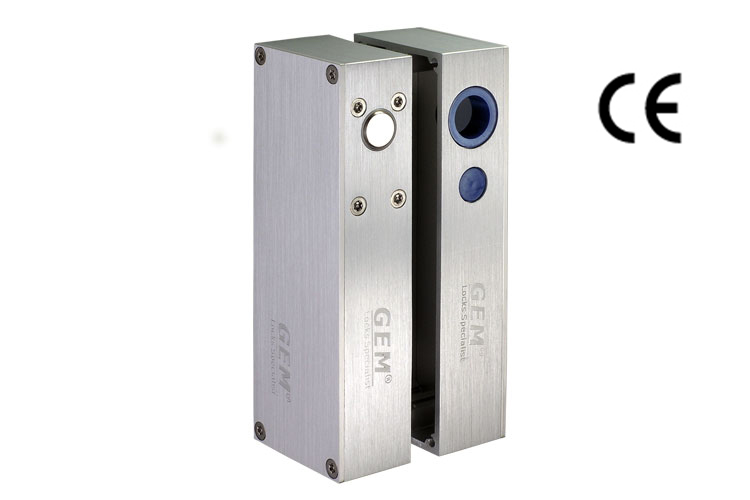

EB300 Electric Dropbolts

The Fail-Safe series electric dropbolt can be mounted horizontally or vertically and provides various functions. It is designed for use on double action doors (or single inswing/outswing doors) and ideal for applications where an electromganetic lock or electric strike is impractical. Surface mount models are also available for hollow metal door or frameless glass door applications.

Features

◆ Fail-safe (Power to lock)
◆ Vandal resistant - The lock cannot be defeated by slipping a metal object between lock and the srtike plate
◆ Built-in bolt status sensor and door position sensor
◆ Relock time delay
◆ Surface Mount

Specification

◆ Voltage:12 VDC
◆ Current Draw:
- Pull in: 0.9A/12VDC, Holding: 0.3A/12VDC

Patents, Approvals, and Listings

◆ CE: EC262504-01

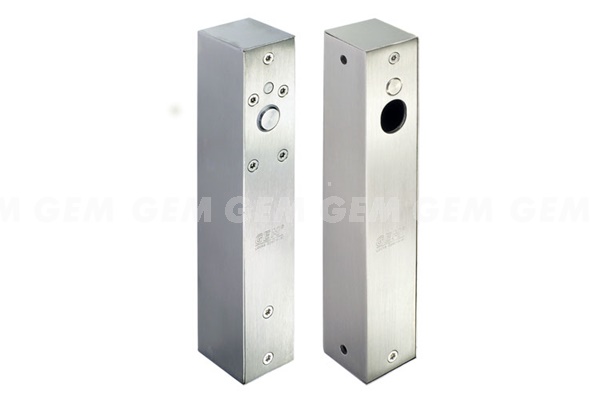

EB400NDS/EB400NDB Electric Dropbolts

The Fail-Safe series electric dropbolt can be mounted horizontally or vertically and provides various functions. It is designed for use on double action doors (or single inswing/outswing doors) and ideal for applications where an electromganetic lock or electric strike is impractical. Surface mount models are also available for hollow metal door or frameless glass door applications.

Features

◆ Fail-safe (Power to lock)
◆ Vandal resistant - The lock cannot be defeated by slipping a metal object between lock and the srtike plate
◆ Built-in intelligent electronics allows the bolt to project several times if the door is not closed properly
◆ Built-in bolt status sensor and door position sensor
◆ Relock time delay
◆ Surface Mount

Specification

◆ Voltage:12 VDC
◆ Current Draw:
- Pull in: 0.9A/12VDC, Holding: 0.3A/12VDC

Patents, Approvals, and Listings

◆ CE: EC262504-01
