PBH-100 series electromechanical push bars are electrified exit devices designed to work with access control as
means of locking mechanism. On exit, simply depress the push bar to open the door. It is recommended to pair
with key cylinders or access control devices on the exterior.
◆ Operating Voltage: 12~24 VDC/AC (SO Models)
◆ Current Draw: 1500 mA (down to 500 mA after 1 seconds)
◆ Endurance: 500,000 cycles
◆ Cover: Aluminum alloy, Silver/Black/Dark Bronze
◆ Relay rating: 5 A/ 125 VAC
◆ Fail-Secure operation (but can be opened from inside by pressing the bar)

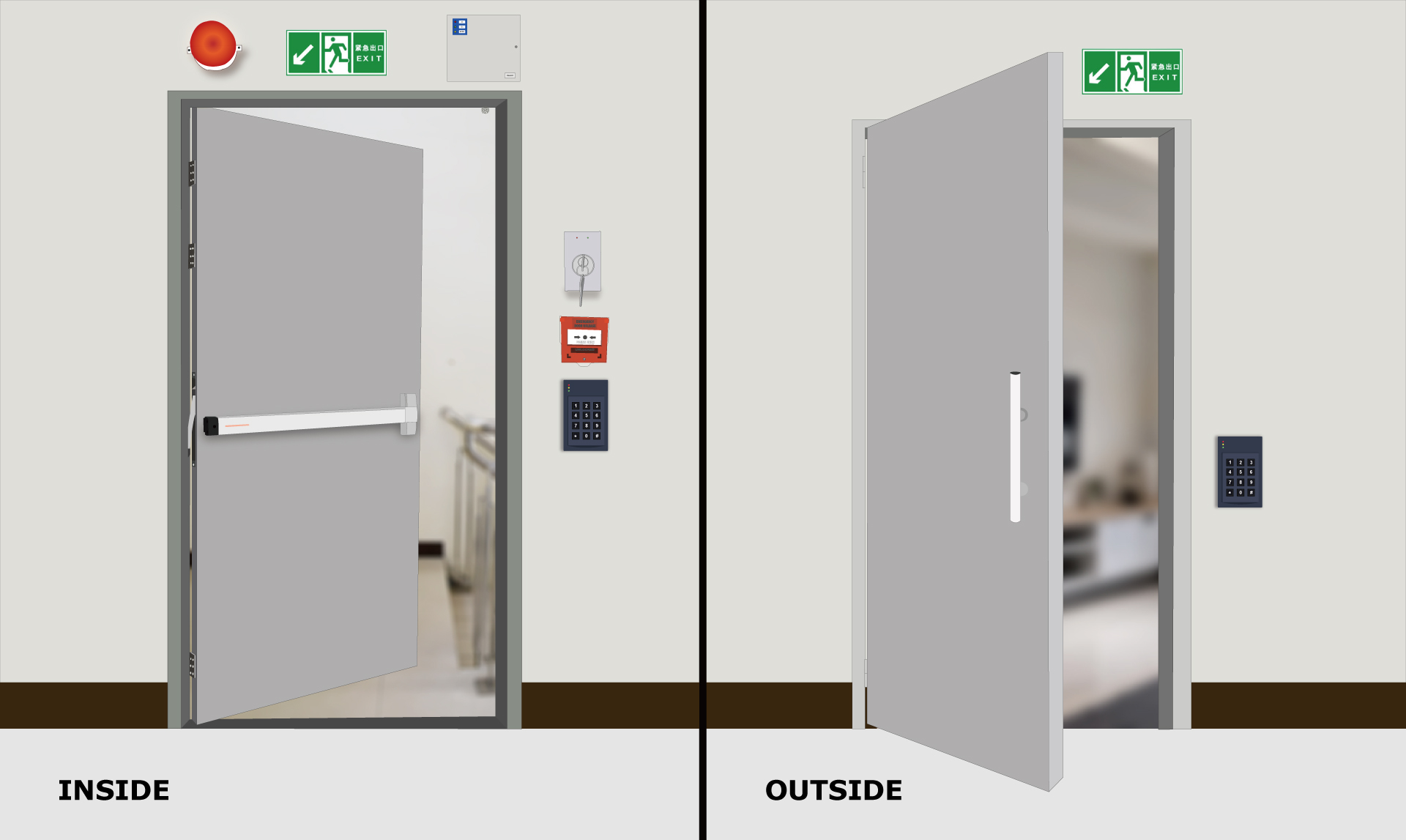

PBH-350/PBH-350LD Electromechanical Push Bar
The PBH-350 Series Electromechanical Push Bar is designed for use on emergency exit doors. It provides a convenient means of escape by simply pushing on a horizontal bar fitted across the width of a door. It also features preload release capability that overcomes door preload problems, such as air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping.
◆ Voltage: 12 or 24VDC
◆ Output: Push bar Latch status
◆ Static strength 1,500 lbs (680Kg)
◆ Up to 500 lbs (227Kg) of preload
◆ Fail-safe mode
◆ Aluminum anodized push bar housing (US28)
◆ Bi-Color LED (Red/Green) (PBH-350LD only)

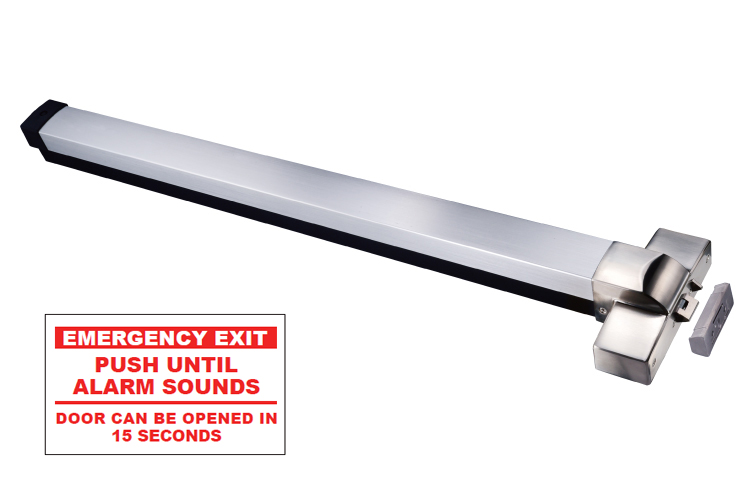

PBH-350DE Electromechanical Push Bar
The PBH-350DE delayed egress exit device provides a controlled egress to prevent unauthorized exit. When
armed, it sounds an audible alarm and stays secure for 15 or 30 seconds, allowing time for the personnel to respond. In an emergency, the device disarms and allows immediate egress.

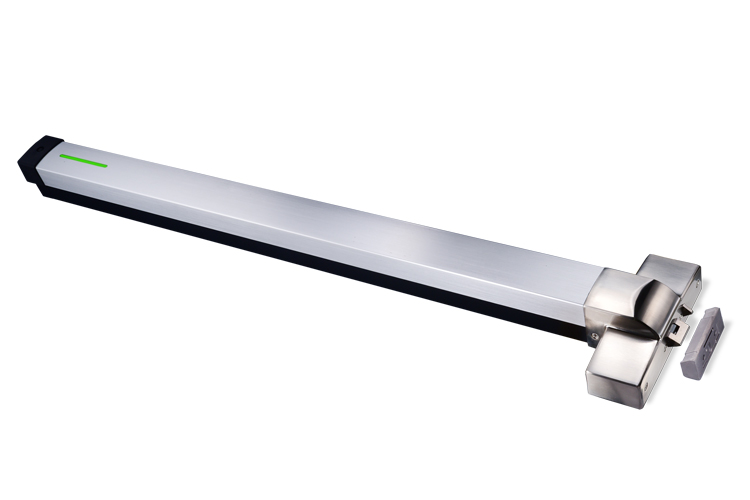

PBH-350LD Electromechanical Push Bar features a large bi-color LED for clear indication and easy operation in the dark.
