Standard Features

  • Non-handed fully reversible
  • Field reversible fail-safe or fail-secure
  • Stainless steel faceplate
  • Latch monitor
  • Lip extension accessory included

Patents, Approvals, and Listings

  • UL listed: BP10269 (GK450,451,480,481)
  • Static strength: 1,500 lbs (680 Kg)
  • Dynamic strength: 50 ft-lbs
  • Eudurance rating: 100, 000 cycles

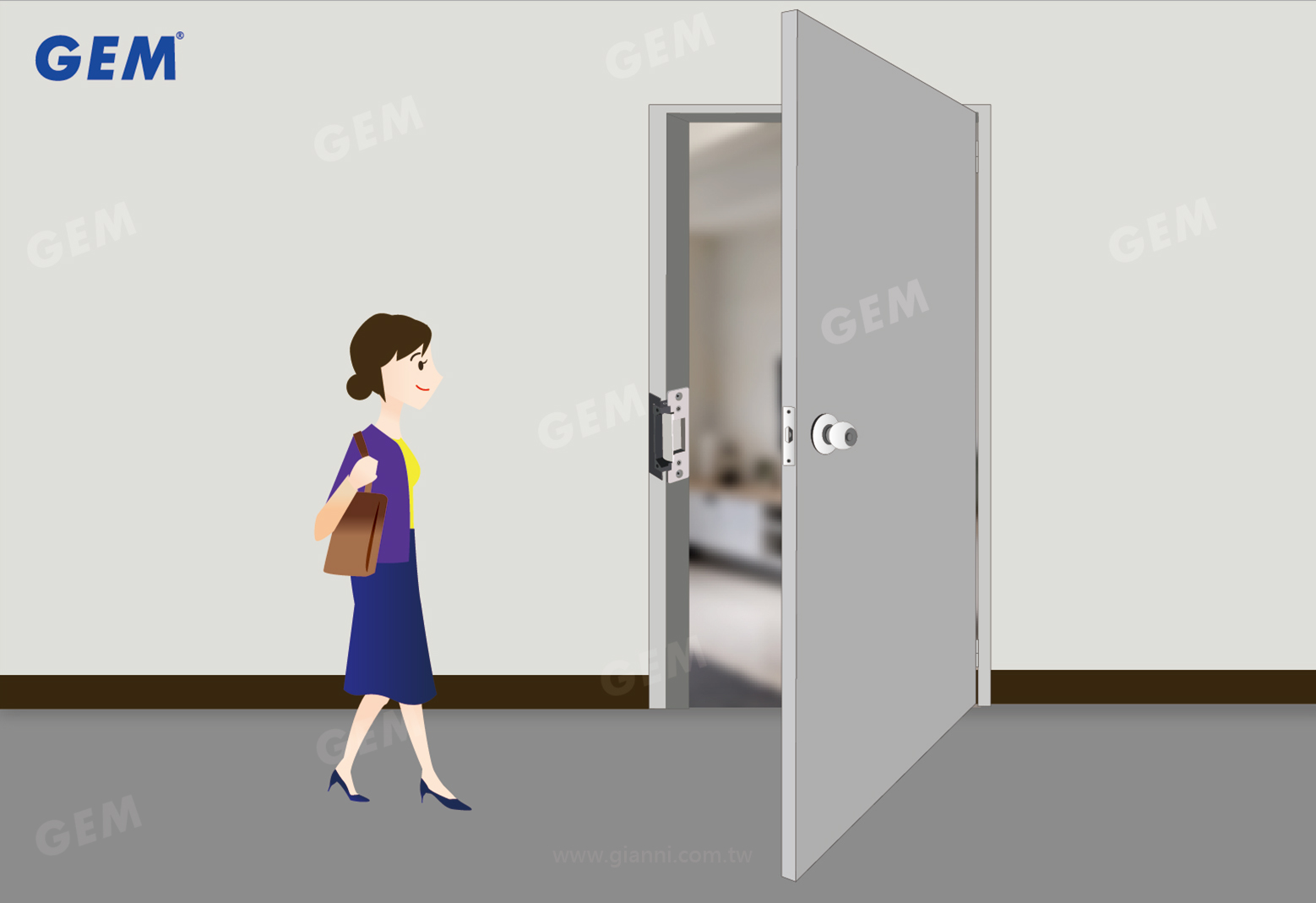

GK450/GK450-ST

  • Voltage:12 or 24VDC, 12/24VDC
  • Latch Throw:9/16"(15mm)
  • Optional Latch Monitor
  • Reversible Fail-safe Or Fail-secure
  • Frame:Hollow Metal
  • Faceplate Finish:Stainless steel
  • Construction:Zinc alloy, Stainless steel

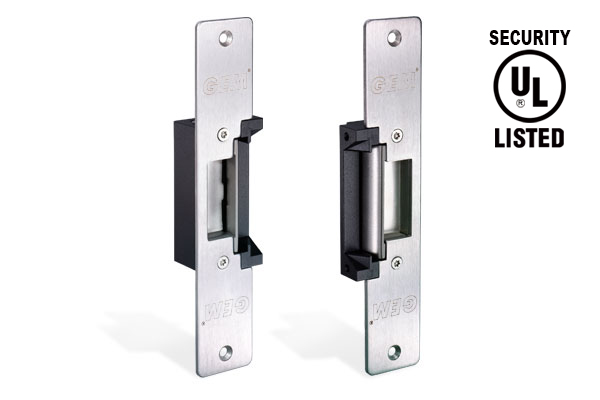

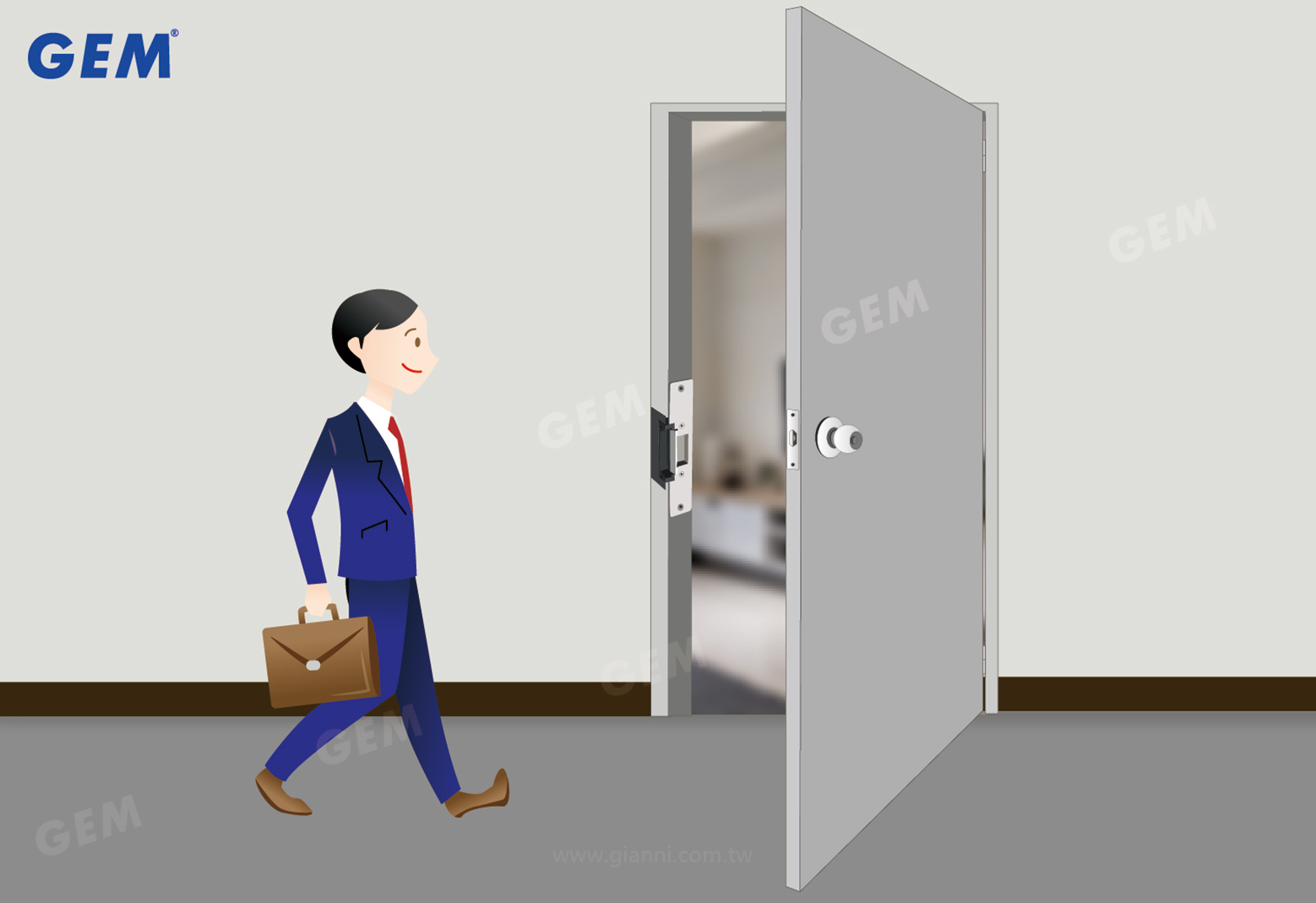

GK451/GK451-ST

  • Voltage:12 or 24VDC, 12/24VDC
  • Latch Throw:9/16"(15mm)
  • Optional Latch Monitor
  • Reversible Fail-safe Or Fail-secure
  • Frame:Wood
  • Faceplate Finish:Stainless steel
  • Construction:Zinc alloy, Stainless steel

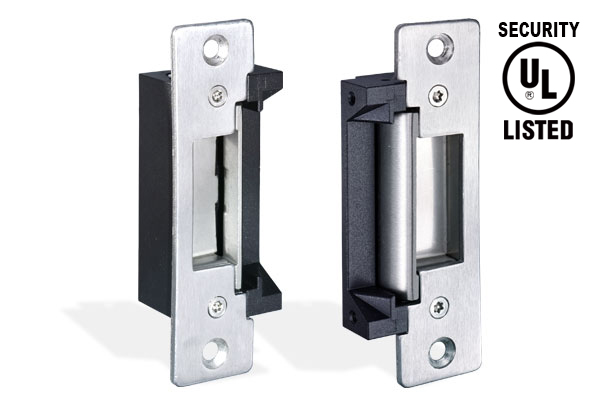

GK480/GK480-ST

  • Voltage:12 or 24VDC, 12/24VDC
  • Latch Throw:3/4"(19mm)
  • Optional Latch Monitor
  • Reversible Fail-safe Or Fail-secure
  • Frame:Hollow Metal
  • Faceplate Finish:Stainless steel
  • Construction:Zinc alloy, Stainless steel

GK481/GK481-ST

  • Voltage:12 or 24VDC, 12/24VDC
  • Latch Throw:3/4"(19mm)
  • Optional Latch Monitor
  • Reversible Fail-safe Or Fail-secure
  • Frame:Wood
  • Faceplate Finish:Stainless steel
  • Construction:Zinc alloy, Stainless steel
