Standard Features

  • Endurance 1,000,000 cycles
  • Non-handed fully reversible
  • Zinc alloy construction
  • Static strength
  • 800 lbs (363Kg) (For GK500/510/515/520/525)
  • 1000 lbs (454Kg) (For GK530/540/545)

Faceplates

  • Stainless steel/Grey powder coated finish
  • 4 Different faceplates included for surface or mortise installation

Other Features

  • Internal hold-open function
  • Mechanical lever (For GK520/525)
  • Adjustable keeper
  • Latch monitor

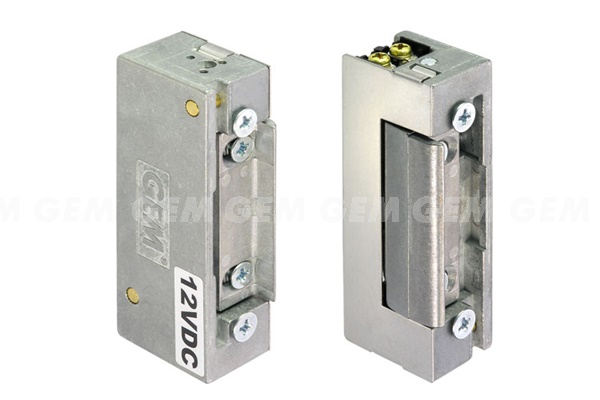

GK500/*GK500M

  • Voltage:12 or 24VDC
  • Mode:Fail-safe
  • Latch Throw:9mm
  • Adjustable Keeper
  • Optional Faceplates:

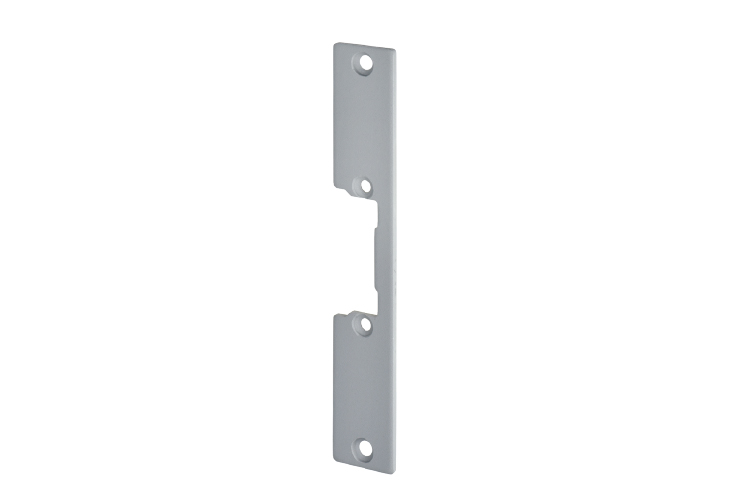

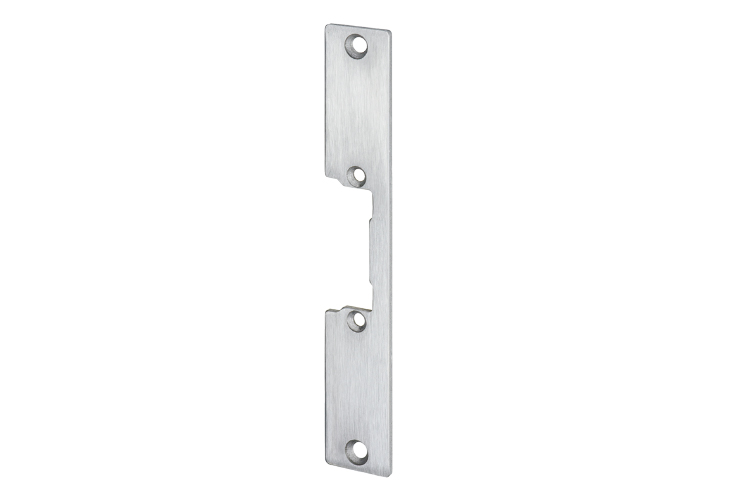

    FP-GK160

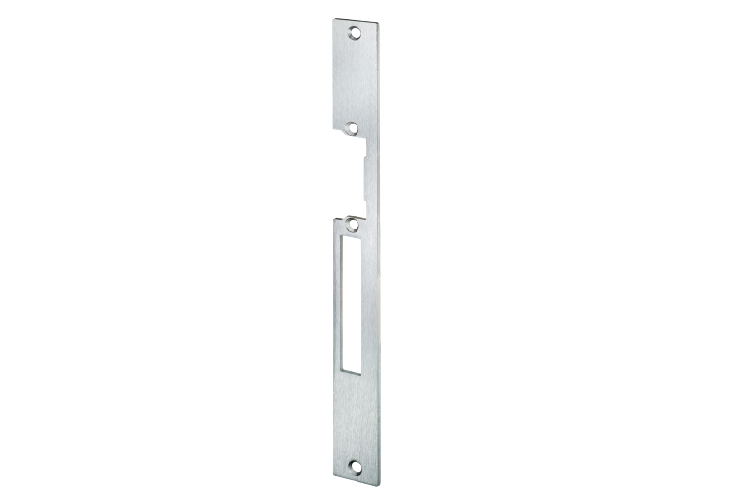

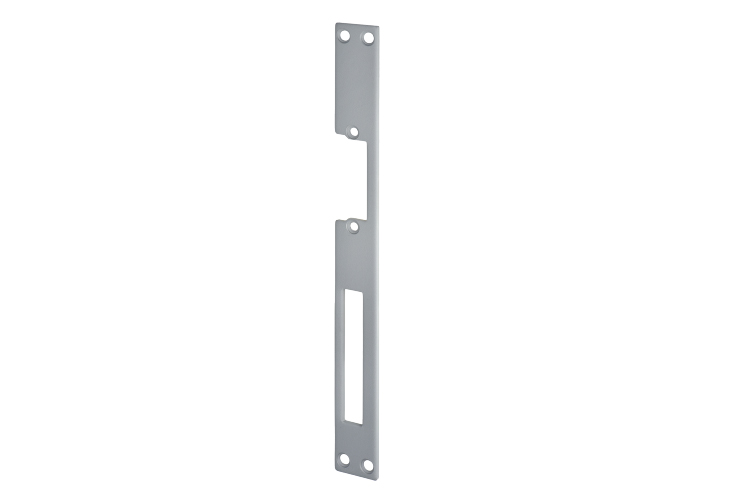

    FP-GK250

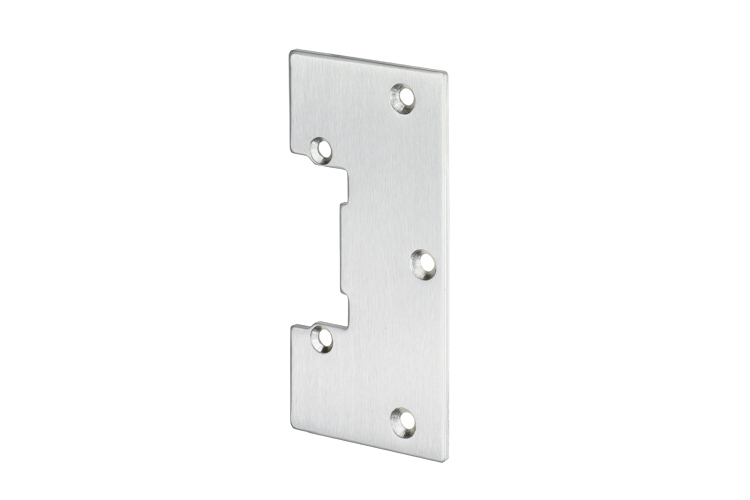

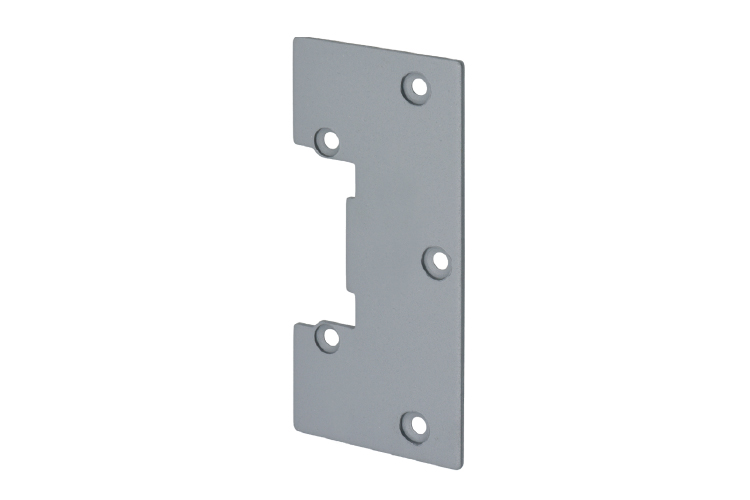

    FP-GK106

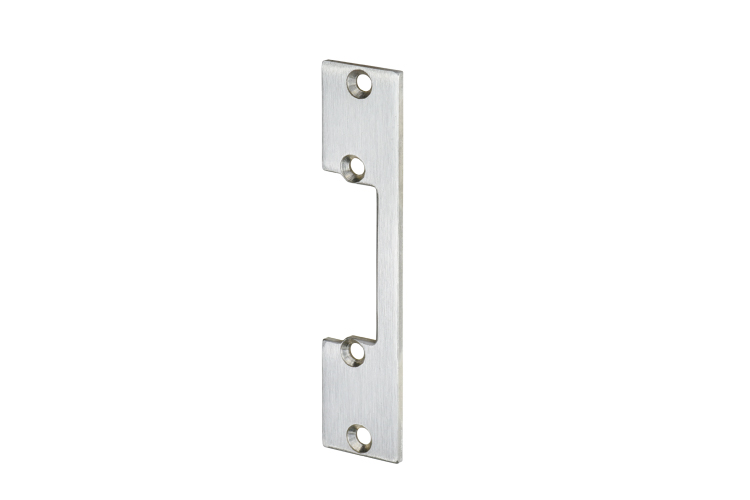

    FP-GK110

GK510/*GK510M

  • Voltage:12 or 24VDC
  • Mode:Fail-secure
  • Latch Throw:9mm
  • Adjustable Keeper
  • Optional Faceplates:
    FP-GK160
    FP-GK250
    FP-GK106
    FP-GK110

GK515/*GK515M

  • Voltage:12 or 24VDC
  • Mode:Fail-secure
  • Latch Throw:9mm
  • Adjustable Keeper
  • Internal Hold-Open
  • Optional Faceplates:
    FP-GK160
    FP-GK250
    FP-GK106
    FP-GK110

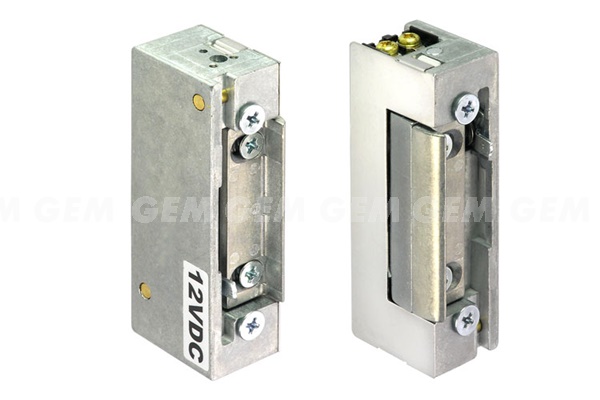

GK520

  • Voltage:12 or 24VDC
  • Mode:Fail-secure
  • Latch Throw:9mm
  • Adjustable Keeper
  • Mechanical Lever
  • Optional Faceplates:
    FP-GK160
    FP-GK106

GK525

  • Voltage:12 or 24VDC
  • Mode:Fail-secure
  • Latch Throw:9mm
  • Adjustable Keeper
  • Internal Hold-Open
  • Mechanical Lever
  • Optional Faceplates:
    FP-GK160
    FP-GK106

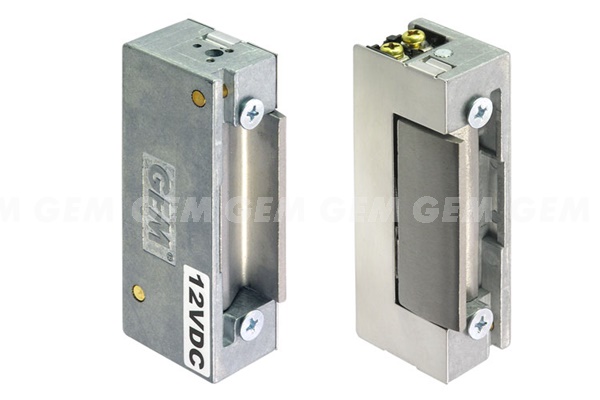

**GK530

  • Voltage:12 or 24VDC
  • Mode:Fail-safe
  • Latch Throw:13mm
  • Optional Faceplates:
    FP-GK160
    FP-GK250
    FP-GK106
    FP-GK110

**GK540

  • Voltage:12 or 24VDC
  • Mode:Fail-secure
  • Latch Throw:13mm
  • Optional Faceplates:
    FP-GK160
    FP-GK250
    FP-GK106
    FP-GK110

**GK545

  • Voltage:12 or 24VDC
  • Mode:Fail-secure
  • Latch Throw:13mm
  • Internal Hold-Open
  • Optional Faceplates:
    FP-GK160
    FP-GK250
    FP-GK106
    FP-GK110

Notes:

* Includes latch monitor.

** Available with stainless steel keeper.
