ILM-200

  • Interlock Module
  • Input Voltage: 12~24VDC
  • Relay Rating: 3A@125VAC/30VDC
  • Dimensions: 73(L) x 63(W) mm

SM1228

  • Power Transformer Module
  • Input Voltage: 13~28 VDC
  • Output Voltage: 300mA/12VDC
  • Dimensions: 51(L) x 40(W) x15(D) mm

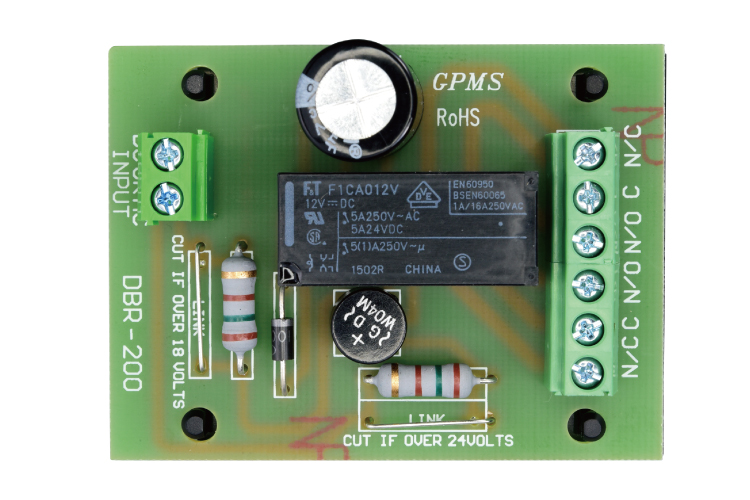

DBR-200

  • Relay Board
  • Input Voltage: 8~30VDC/11~30VDC
  • Current Draw: 45mA/12VDC
  • Relay Rating: 5A/24VAC, 5A/30VDC

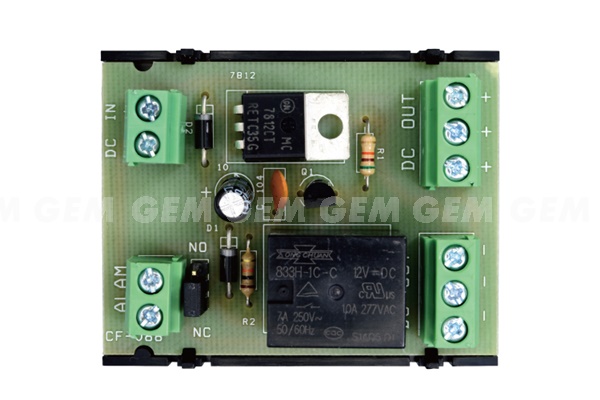

FFP-1224-7A

  • PSU Interface Module for Fire Alarm Panel
  • Input Voltage: 12~24VDC
  • Output Voltage: 12~24VDC
  • Relay Rating: 7A/30VDC

PSM-S1A12V

  • Weatherproof Voltage Switching Module
  • Input Voltage: 12~28VAC, 12~50 VDC
  • Output Voltage: 1A/12VDC
  • Efficiency: >70%
  • Dimensions: 70(L) x 40(W) x 20(D) mm

SM1224-1A

  • Mini Voltage Switching Module
  • Input Voltage: 12~24VDC/AC
  • Output Voltage: 300mA/12VDC
  • Dimensions: 51(L) x 40(W) x 15(D) mm

SM1224-1A-N

  • Full Wave Bridge Rectifier with LED Indicator
  • Converts AC to unfiltered DC
  • Input Voltage: 12~24VDC/AC
  • Output Voltage: 1A/12VDC
  • Dimensions: 58.5(L) x 23.5(W) x 22(D) mm
