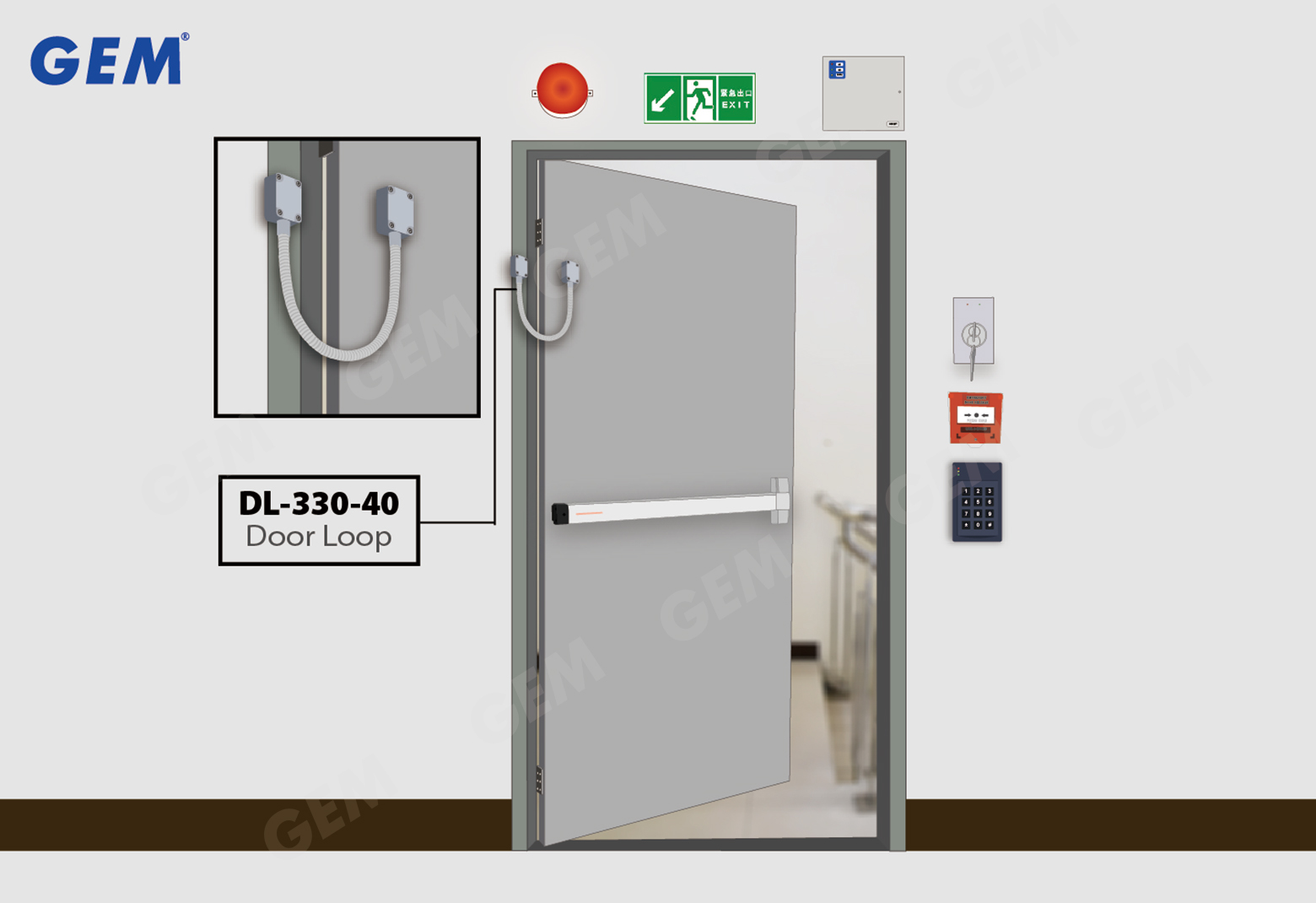

GEM Power Transfer Door Loops offer a protective means of running wires from the frame to door installed with electrical devices, such as electrified locks. These power transfer door loops prevent foreign objects from damaging the wires and also produce aesthetically pleasing appearance. Surface and concealed mortise mount power transfer loops are provided.




DL-200A-30/40/50

  • Descriptions/Finish: Aluminum end caps
  • Dimensions:
    11 13/16” (300mm)
    15 3/4” (400mm)
    19 11/16” (500mm)
  • Inside Door Loop Diameter: 5/16” (8mm)
  • Outside Door Loop Diameter: 7/16” (10.7mm)

DL-200P-30/40/50

  • Descriptions/Finish: Silver/Black/White/Plastic end caps, Stainless steel cable
  • Dimensions:
    11 13/16” (300mm)
    15 3/4” (400mm)
    19 11/16” (500mm)
  • Inside Door Loop Diameter: 5/16” (8mm)
  • Outside Door Loop Diameter: 7/16” (10.7mm)

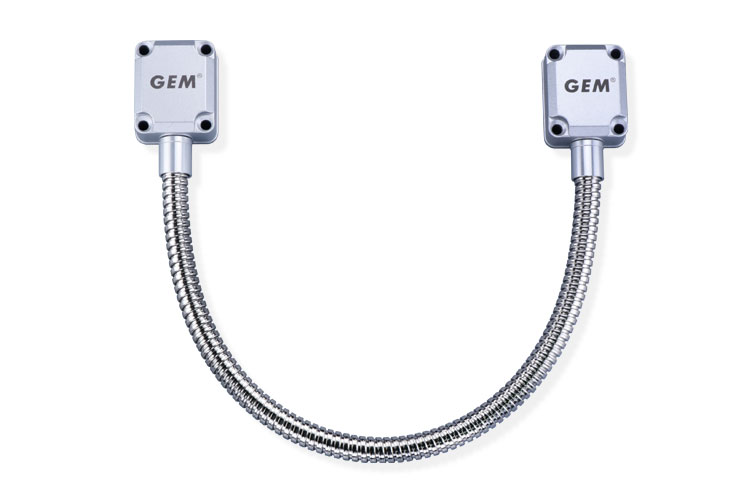

DL-350

  • Descriptions/Finish: Aluminum boxes, Stainless steel cable
  • Dimensions:
    15 3/4” (400mm)
  • Inside Door Loop Diameter: 3/8” (9mm)
  • Outside Door Loop Diameter: 1/2” (12mm)
  • Up to 550 lbs

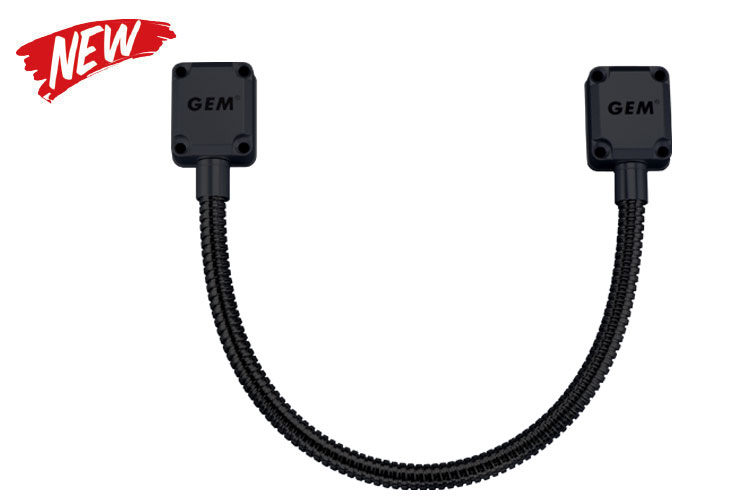

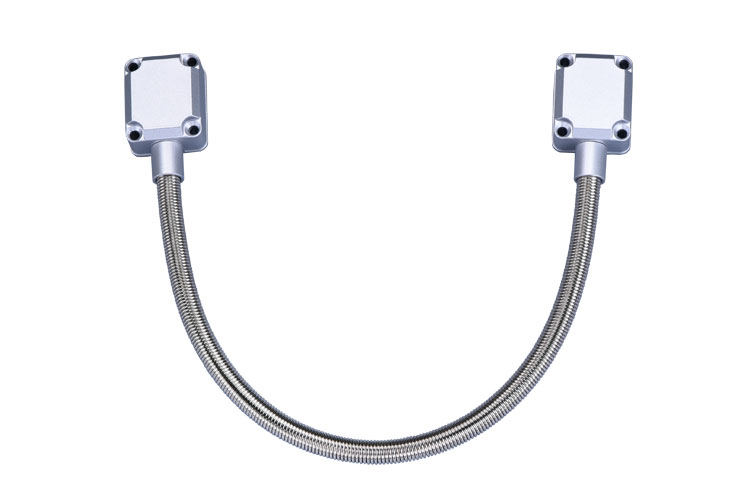

DL-350

  • Descriptions/Finish: Aluminum boxes, Spring steel cable
  • Dimensions:
    15 3/4” (400mm)
  • Inside Door Loop Diameter: 3/8” (9mm)
  • Outside Door Loop Diameter: 1/2” (12.5mm)
  • Up to 550 lbs

DL-350

  • Descriptions/Finish: Aluminum boxes, Spring-back stainless steel cable
  • Dimensions:
    15 3/4” (400mm)
  • Inside Door Loop Diameter: 3/8” (10mm)
  • Outside Door Loop Diameter: 1/2” (12.5mm)
  • Up to 550 lbs

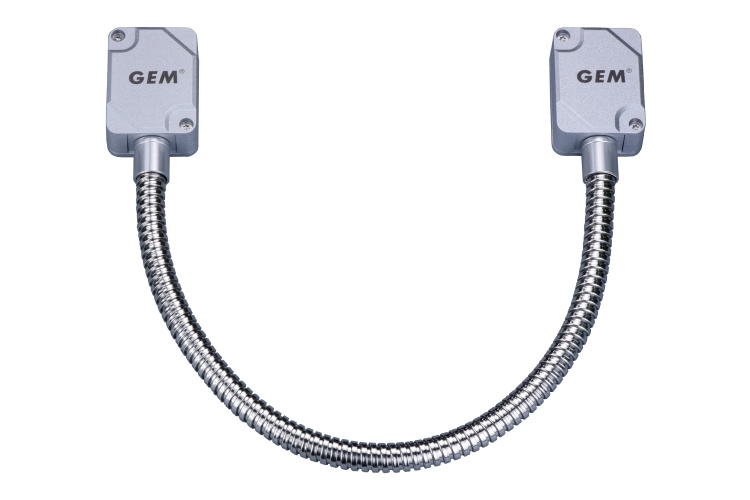

DL-370

  • Descriptions/Finish: Aluminum boxes, Stainless steel cable, US28
  • Dimensions:
    15 3/4” (400mm)
  • Inside Door Loop Diameter: 3/8” (9mm)
  • Outside Door Loop Diameter: 1/2” (12.5mm)
  • Up to 550 lbs

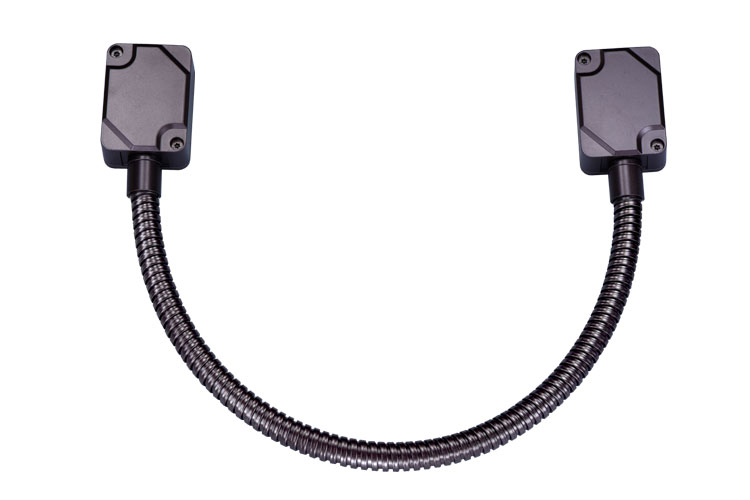

DL-370-US40

  • Descriptions/Finish: Aluminum box, Stainless steel cable, US40
  • Dimensions:
    15 3/4” (400mm)
  • Inside Door Loop Diameter: 3/8” (9mm)
  • Outside Door Loop Diameter: 1/2” (12.5mm)
  • Up to 550 lbs

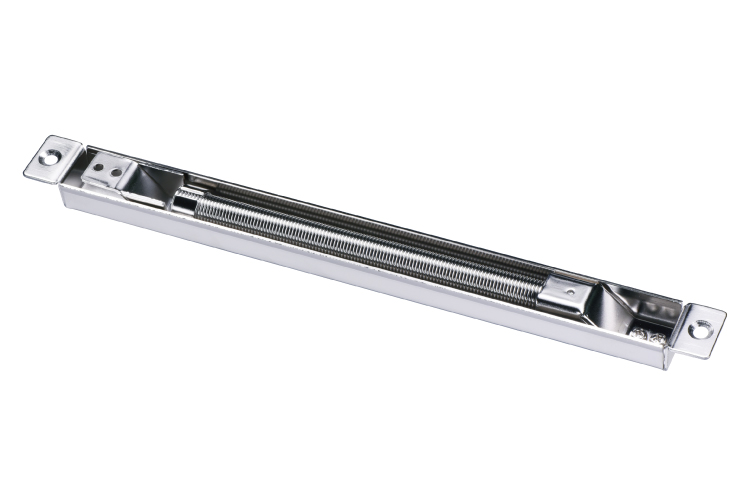

DL-400

  • Descriptions/Finish: Square enclosure, Nickle-plated iron conduit
  • Dimensions:
    11 7/16” L x 15/16”W x 5/8”D (290 L x 24.5 W x 16.3D mm)
  • Inside Door Loop Diameter: 3/8” (9mm)
  • Outside Door Loop Diameter: 9/16” (14.5mm)

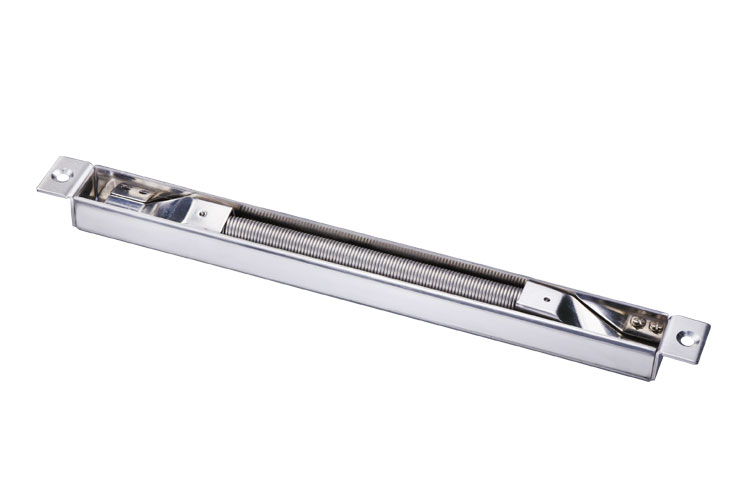

DL-417ST

  • Descriptions/Finish: Square enclosure, Stainless steel flex conduit, Metal frame
  • Dimensions:
    11 7/16” L x 15/16”W x 13/16”D (290 L x 24.5 W x 20D mm)
  • Inside Door Loop Diameter: 3/8” (9mm)
  • Outside Door Loop Diameter: 9/16” (14.5mm)

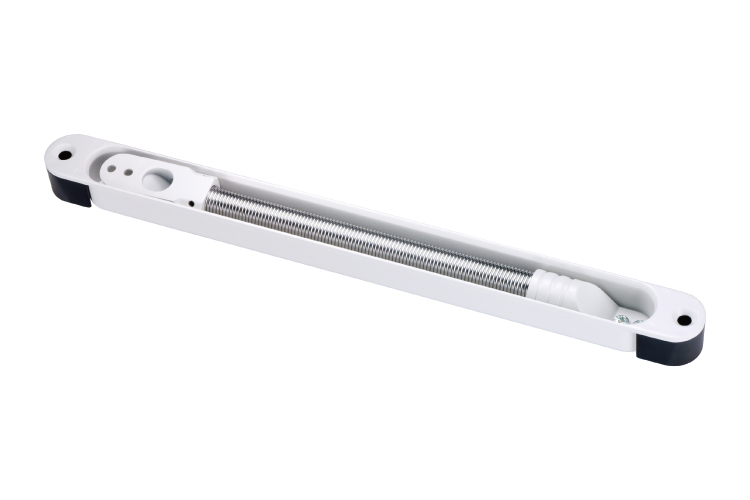

DL-500

  • Descriptions/Finish: Oval enclosure, Stainless steel flex conduit, Wooden frame
  • Dimensions:
    11 1/2” L x 1”W x 11/16”D (292 L x 24.8 W x 18D mm)
  • Inside Door Loop Diameter: 3/8” (9mm)
  • Outside Door Loop Diameter: 9/16” (14.5mm)

* Standard model of power transfer door loop is 15 3/4” (400mm) length
