GEM TLM series LED indicator lights can be compatible with any access control systems. The red and green LED indicator provide visual confirmation when the door is locked or unlocked. They operate on 12/24 VDC and can be either mortise or surface mounted. The TLM-300/600-4 also includes an EXIT button to release an electrified lock.




TLM-100

  • Voltage: 12/24VDC
  • 2 Bulbs (Red & Green)
  • Mount: Flush
  • Flaceplate Construction: Stainless steel

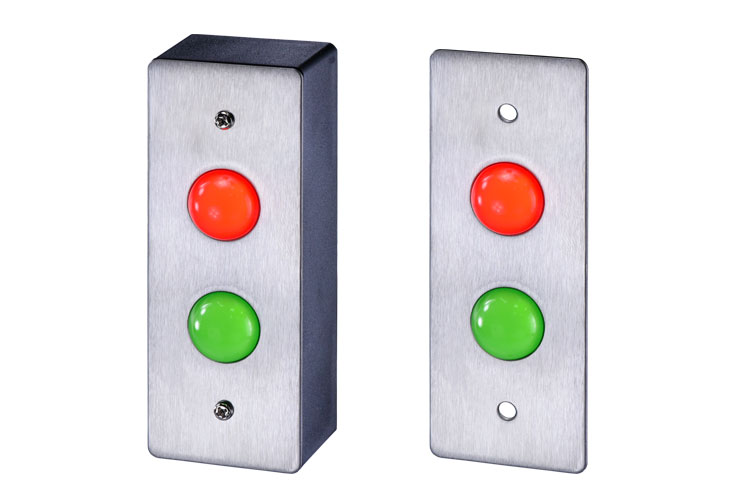

TLM-100MTS

  • Voltage: 12/24VDC
  • 2 Bulbs (Red & Green)
  • Mount: Surface
  • Flaceplate Construction: Stainless steel

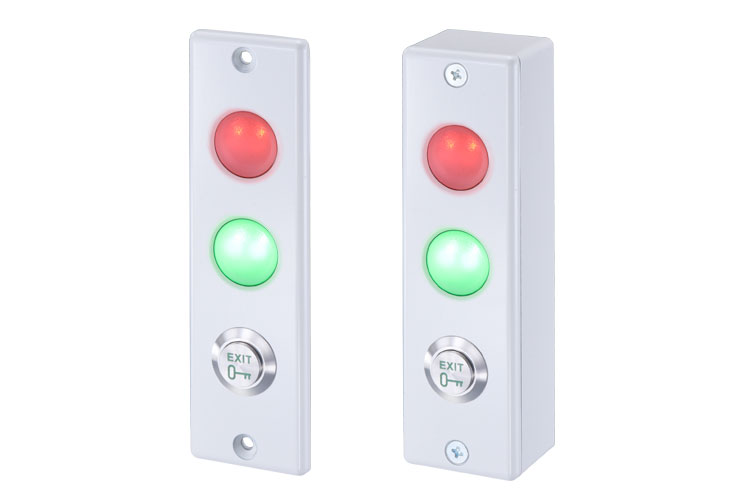

TLM-300

  • Voltage: 12/24VDC
  • Push Button
  • Switch Contact: Single pole
  • 2 Bulbs (Red & Green)
  • Mount: Flush
  • Flaceplate Construction: Zinc alloy

TLM-300S

  • Voltage: 12/24VDC
  • Push Button
  • Switch Contact: Single pole
  • 2 Bulbs (Red & Green)
  • Mount: Surface
  • Flaceplate Construction: Zinc alloy

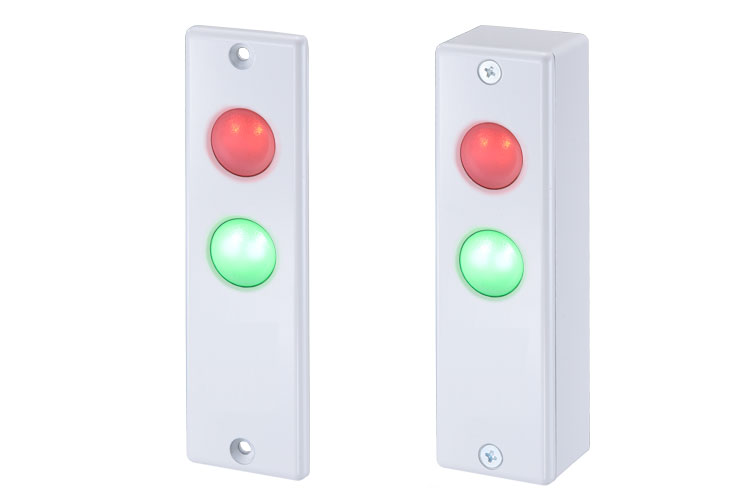

TLM-400

  • Voltage: 12/24VDC
  • 2 Bulbs (Red & Green)
  • Mount: Flush
  • Flaceplate Construction: Zinc alloy

TLM-400S

  • Voltage: 12/24VDC
  • 2 Bulbs (Red & Green)
  • Mount: Surface
  • Flaceplate Construction: Zinc alloy

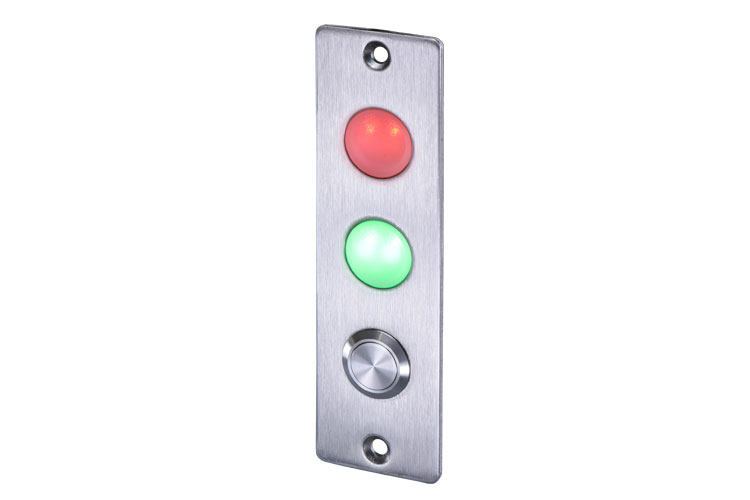

TLM-600-4

  • Voltage: 12/24VDC
  • Push Button
  • Switch Contact: Dobule pole
  • 2 Bulbs (Red & Green)
  • Mount: Flush
  • Flaceplate Construction: Stainless steel

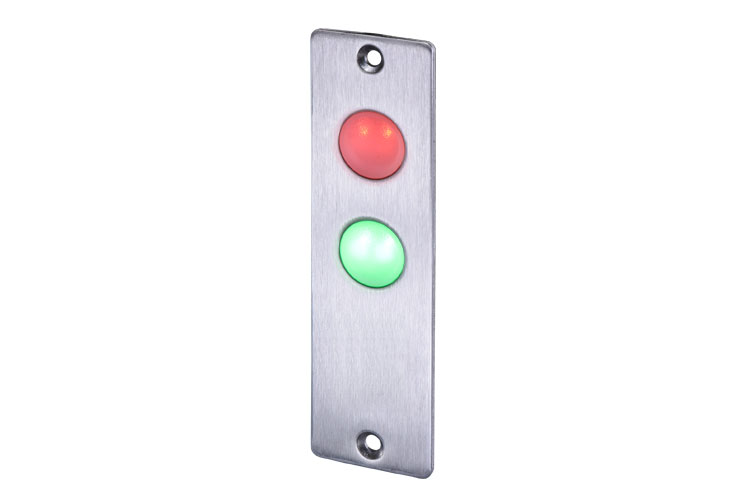

TLM-600N

  • Voltage: 12/24VDC
  • 2 Bulbs (Red & Green)
  • Mount: Surface
  • Flaceplate Construction: Stainless steel

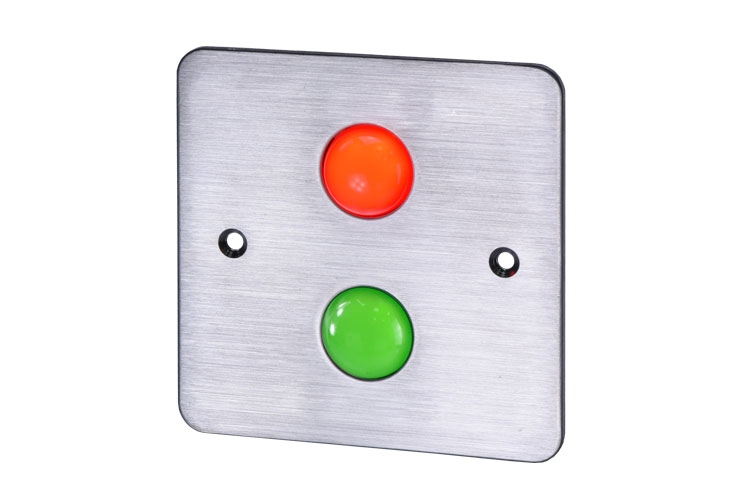

TLM-200

  • Voltage: 12-24VDC
  • 2 Bulbs (Red & Green)
  • Mount: Flush
  • Flaceplate Construction: Stainless steel

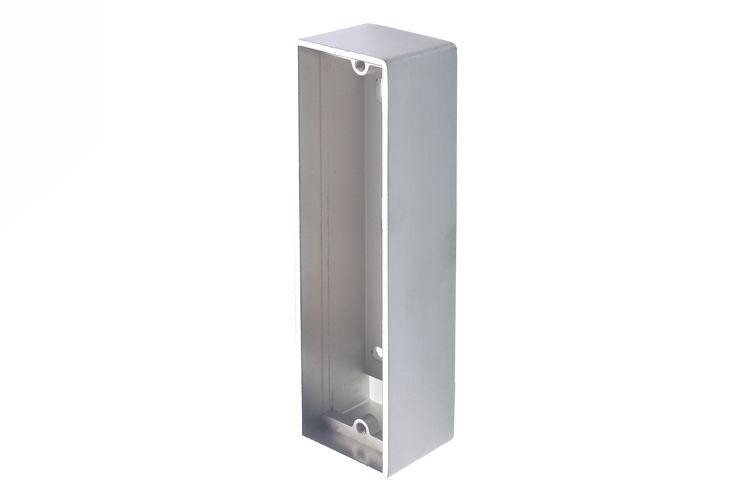

SMB-040

  • Dimension: 115x43x32mm

SMB-86ALU-03

  • Dimension: 85.5x85.5x38mm
