Standard Features

Patents, Approvals, and Listings

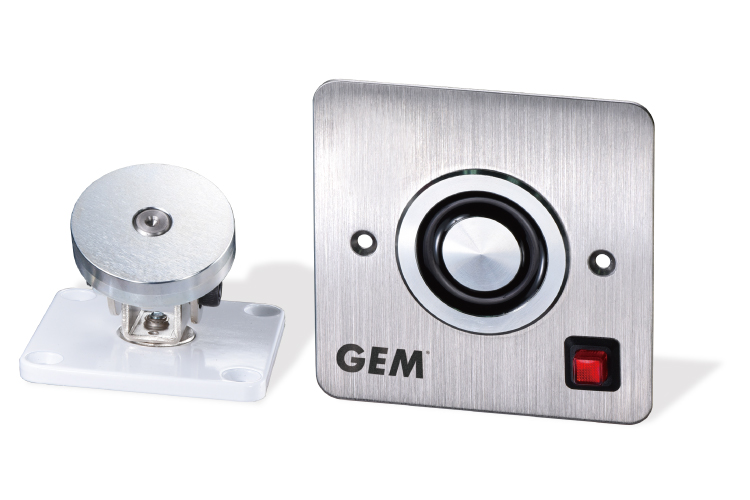

GD640S

  • Voltage: 24VDC (Special order for 12VAC/DC) operation
  • Holding Force: 70 lbs
  • Manual Release Button
  • Mount: Flush
  • Finish Color: Stainless steel
  • LED
  • Armature Plate Type: Square, Swivel

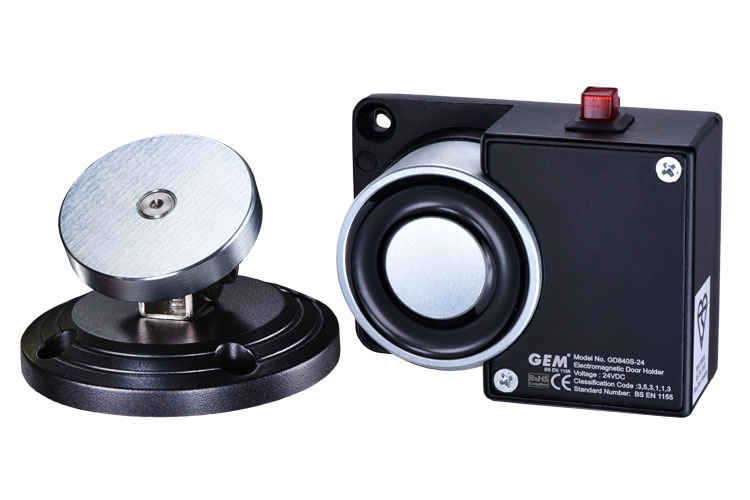

GD840S

  • Voltage: 24VDC (Special order for 12VAC/DC) operation
  • Holding Force: 80 lbs
  • Manual Release Button
  • Mount: Surface
  • Finish Color: Black
  • LED
  • Armature Plate Type: Round, Swivel or Self-adjustable

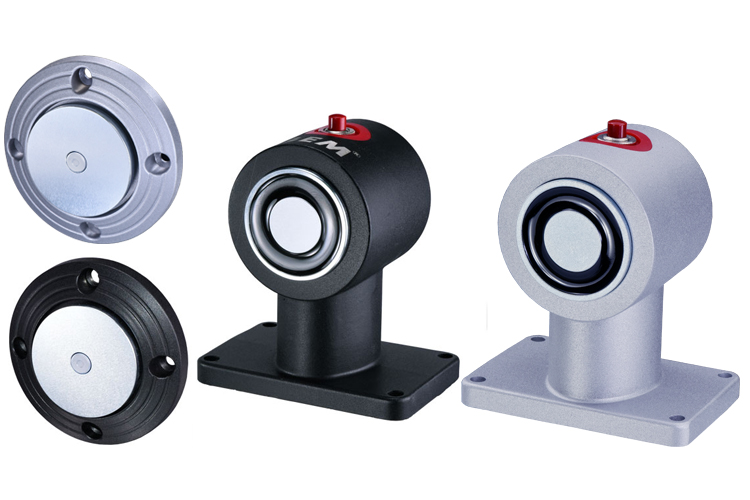

GD850F

  • Voltage: 24VDC (Special order for 12VAC/DC) operation
  • Holding Force: 80 lbs
  • Manual Release Button
  • Mount: Floor
  • Finish Color: Black
  • LED
  • Armature Plate Type: Round, Swivel or Self-adjustable

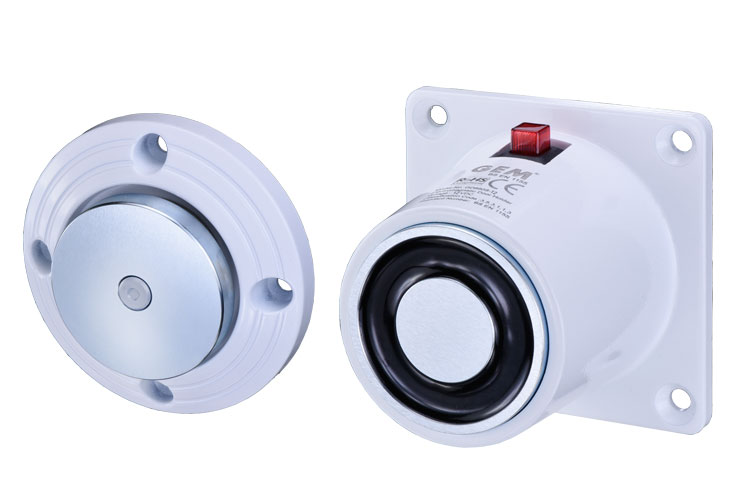

GD860S

  • Voltage: 24VDC (Special order for 12VAC/DC) operation
  • Holding Force: 70 lbs
  • Manual Release Button
  • Mount: Surface
  • Finish Color: White
  • LED
  • Armature Plate Type: Round, Swivel or Self-adjustable

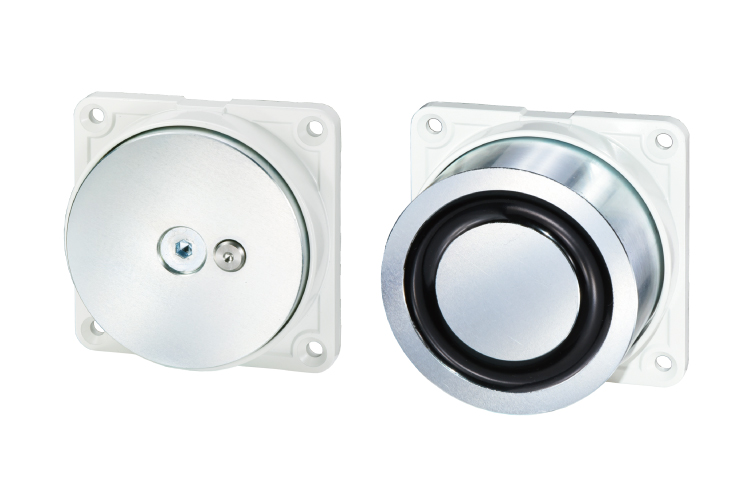

RM90

  • Voltage: 24VDC (Special order for 12VDC, 12~24VDC) operation
  • Holding Force: 550 lbs
  • Mount: Surface
  • Finish Color: Silver, Black
  • Bond Sensor Output
  • Armature Plate Type: Round, Flxed
