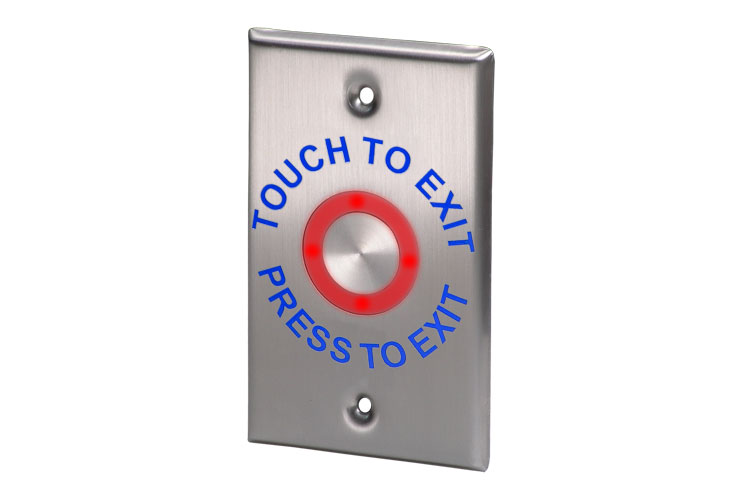

BTS-400-ANSI

    ◆ Input voltage 12 to 24 VDC
    ◆ Momentary SPDT, 3A/24VDC
    ◆ Adjustable time delay 1 to 30 seconds
    ◆ Bi-color LED (Red/Green)
    ◆ Stainless steel plate
    ◆ ANSI size
    ◆ Flush mounted

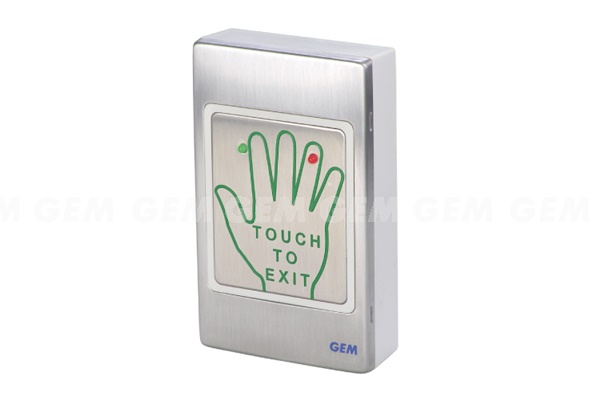

BTS-115-ANSI

    ◆ Input voltage 12 to 24 VDC
    ◆ Momentary SPDT, 3A/24VDC
    ◆ Adjustable time delay 1 to 30 seconds
    ◆ Red & Green LEDs
    ◆ Stainless steel plate
    ◆ ANSI size
    ◆ Flushed mounted

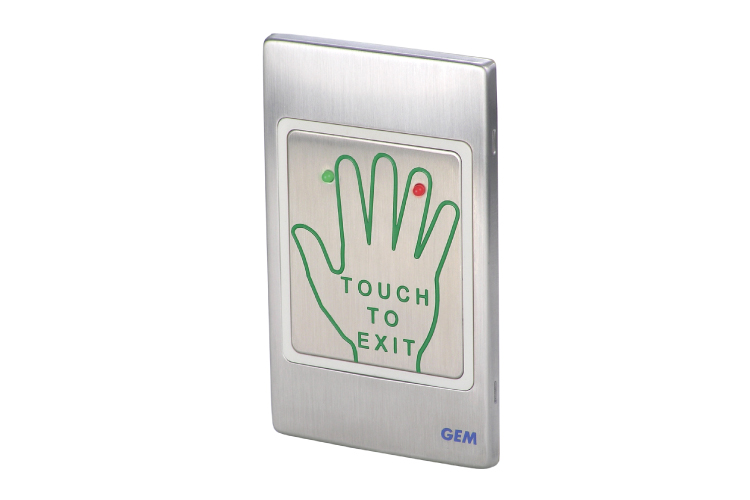

BTS-115-S

    ◆ Input voltage 12 to 24 VDC
    ◆ Momentary SPDT, 3A/24VDC
    ◆ Adjustable time delay 1 to 30 seconds
    ◆ Red & Green LEDs
    ◆ Stainless steel plate
    ◆ ANSI size
    ◆ Surface mounted

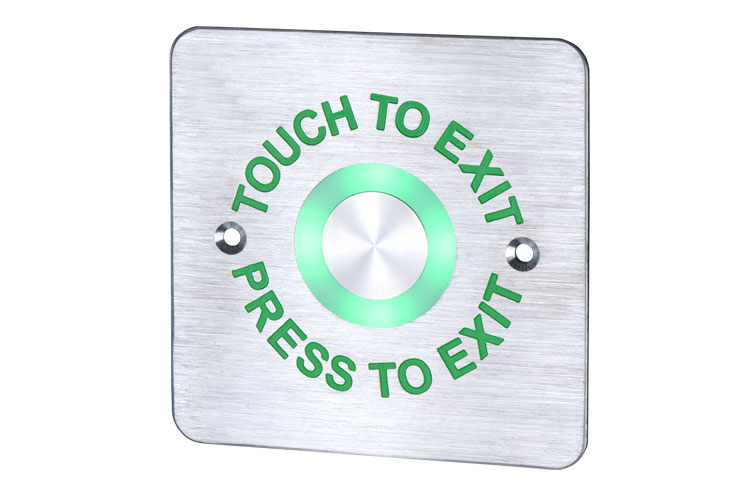

BTS-486

    ◆ Input voltage 12 to 24 VDC
    ◆ Momentary SPDT, 3A/24VDC
    ◆ Adjustable time delay 1 to 30 seconds
    ◆ Bi-color LED (Red/Green)
    ◆ Stainless steel plate
    ◆ European size
    ◆ Flush mounted

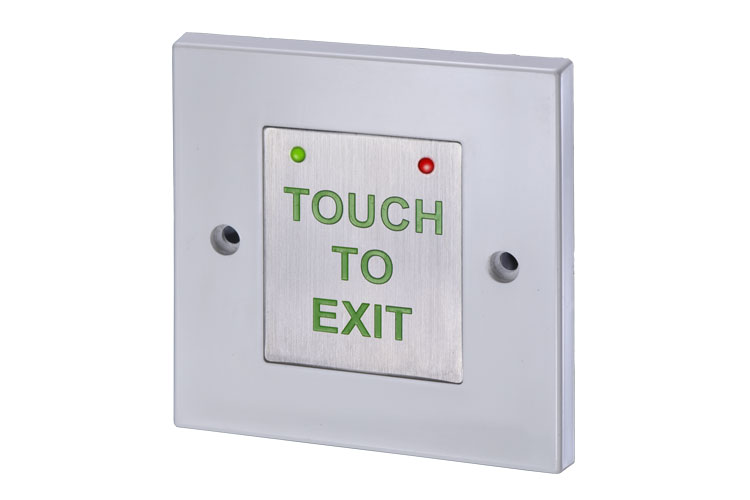

BTS-85UK

    ◆ Input voltage 12 to 24 VDC
    ◆ Momentary SPDT, 3A/24VDC
    ◆ Adjustable time delay 1 to 30 seconds
    ◆ Red & Green LEDs
    ◆ Plastic plate
    ◆ European size
    ◆ Flush mounted

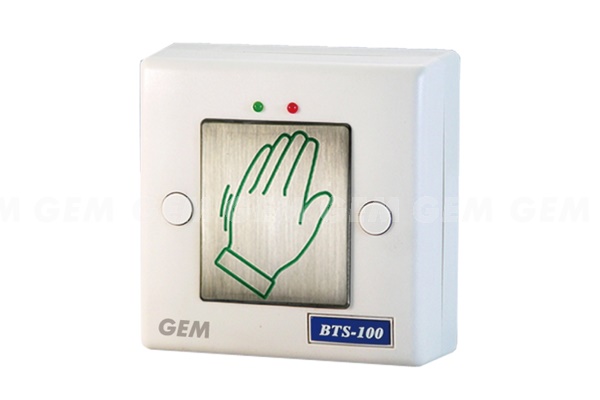

BTS-100

    ◆ Input voltage 12 to 24 VDC
    ◆ Momentary SPDT, 3A/24VDC
    ◆ Adjustable time delay 1 to 30 seconds
    ◆ Red & Green LEDs
    ◆ Plastic plate
    ◆ European size
    ◆ Surface mounted

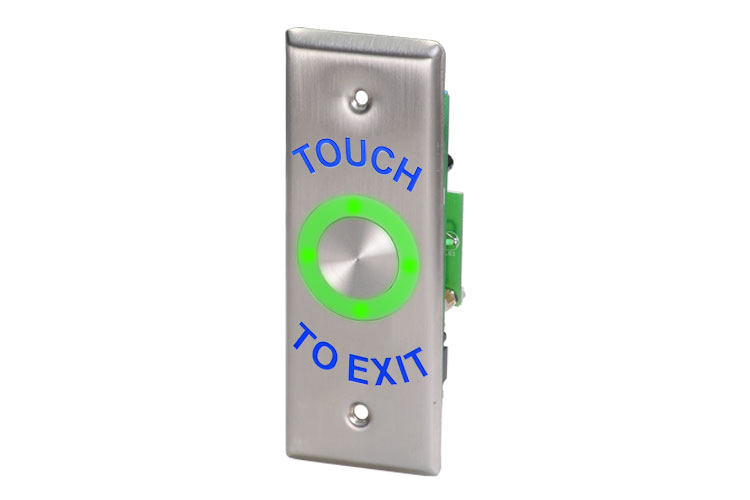

BTS-300

    ◆ Input voltage 12 to 24 VDC
    ◆ Momentary SPDT, 3A/24VDC
    ◆ Adjustable time delay 1 to 30 seconds
    ◆ Bi-color LED (Red/Green)
    ◆ Stainless steel plate
    ◆ Narrow size
    ◆ Flush mounted

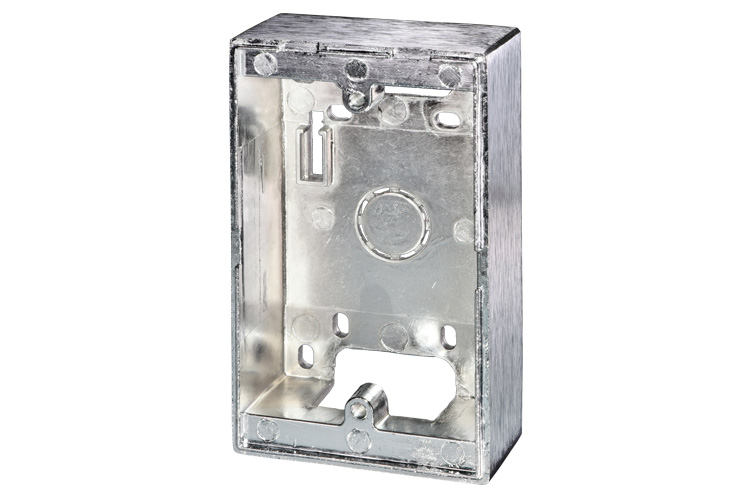

SMB-750

    Metal, 114 (L) x 70 (W) x 21 (D) mm

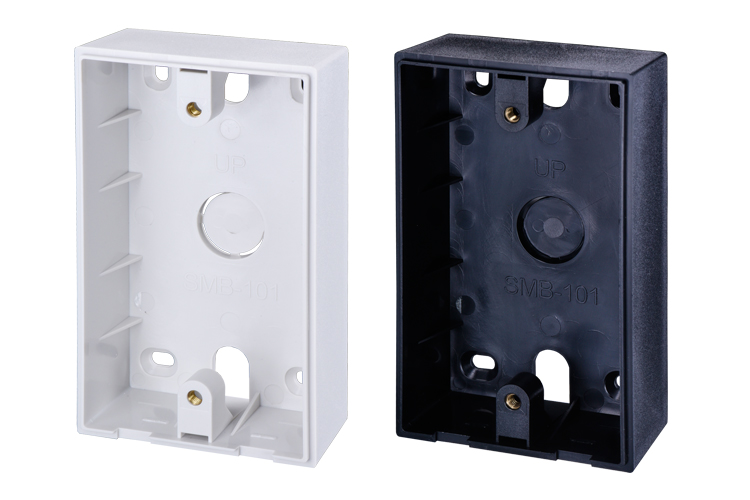

SMB-101

    Plastic, black/white, 114 (L) x 70 (W) x 30 (D) mm

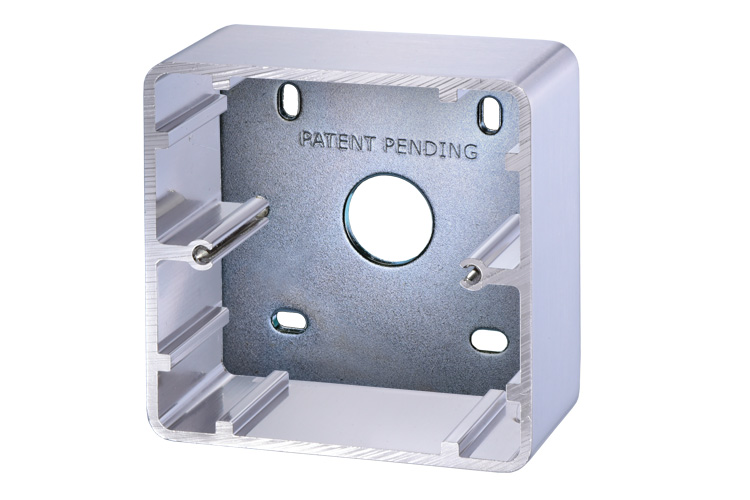

SMB-86ALU

    Aluminum, silver, 85.5 (L) x 85.5 (W) x 38 (D) mm

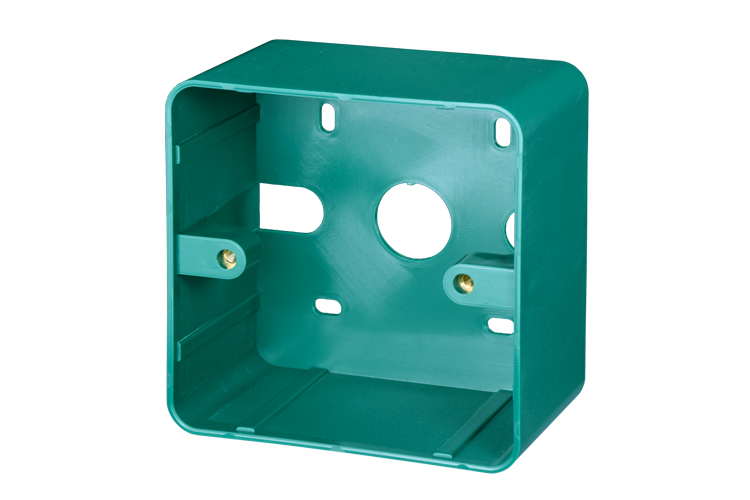

PBS-86G

    Plastic, green, 90 (L) x 90 (W) x 50 (D) mm

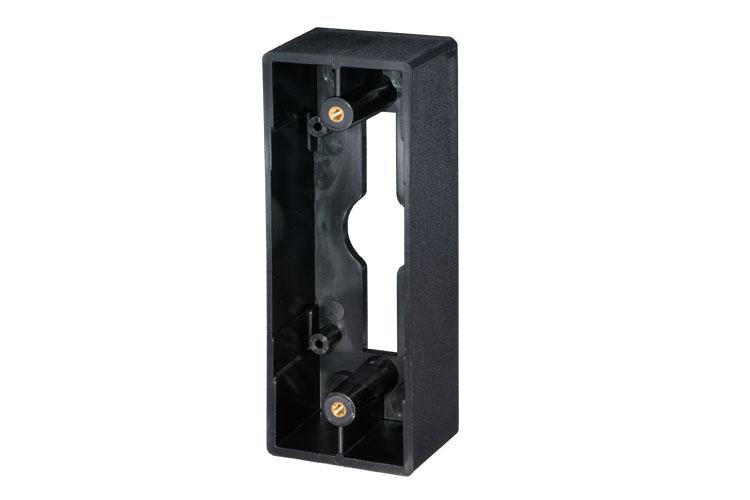

SMB-040

    Plastic, black, 115 (L) x 43 (W) x 32 (D) mm
