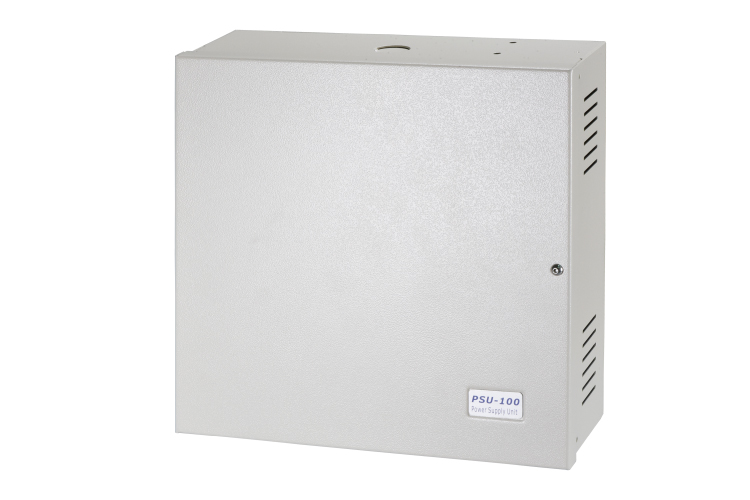

The GEM family of PSU series power supplies is specifically designed to support electrified locks and access control systems. It can serve as an uninterruptible power source that
provides emergnecy power when the input power fails. The PSU series is available with various functions for different applications.
Protection
The PSU series power supplies are eqipped with a variety of protection functions:
◆ AC & DC overcurrent
◆ DC short circuit
◆ DC thermal overload
◆ Reverse battery polarity
Standard Features
◆ Filtered & regulated DC output
◆ Sealed lead acid battery charging capability (Battery not included, Maximum battery size 12VDC/7AH)
◆ Dimensions: 8 7/8 “ x 8 1/2” x 3 1/8” (226 x 216 x 80mm)
◆ Special Feature: Simple version

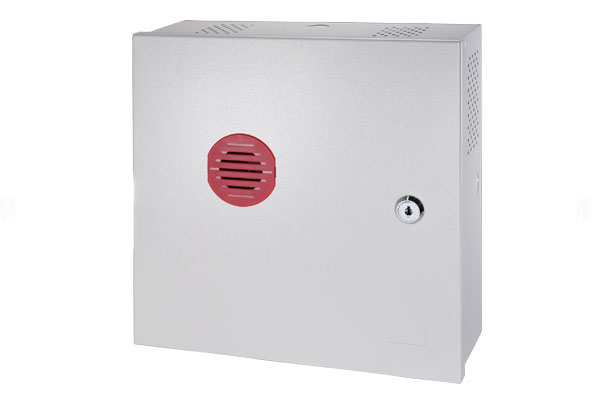

PSU310 Power Supplies
The GEM family of PSU series power supplies is specifically designed to support electrified locks and access control systems. It can serve as an uninterruptible power source that
provides emergnecy power when the input power fails. The PSU series is available with various functions for different applications.
The PSU310 series is a multi-functional controller ideal for use where an interface with a fire alarm system is needed.
Protection
The PSU series power supplies are eqipped with a variety of protection functions:
◆ AC & DC overcurrent
◆ DC short circuit
◆ DC thermal overload
◆ Reverse battery polarity
Standard Features
◆ Filtered & regulated DC output
◆ Sealed lead acid battery charging capability (Battery not included, Maximum battery size 12VDC/7AH)
◆ Dimensions: 10 3/8” x 10 3/8" x 3 1/8” (263 x 263 x 80mm)
◆ Special Feature: Built-in red flashing light and alarm

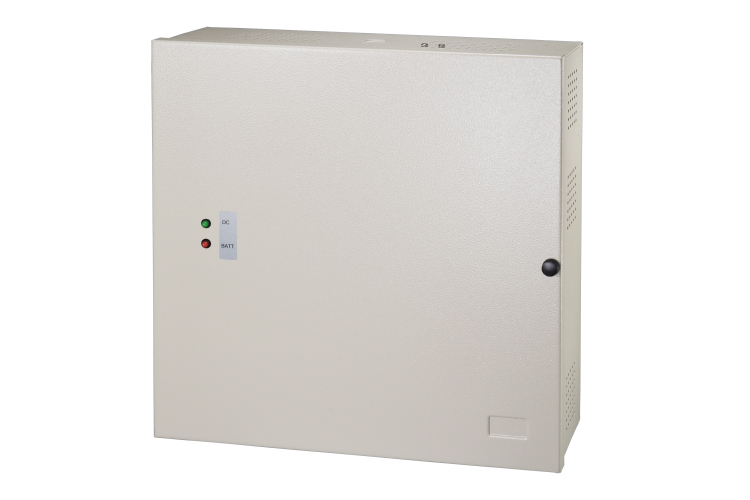

PSU510 Power Supplies
The GEM family of PSU series power supplies is specifically designed to support electrified locks and access control systems. It can serve as an uninterruptible power source that
provides emergnecy power when the input power fails. The PSU series is available with various functions for different applications.
The PSU510 series is a multi-functional controller ideal for use where an interface with a fire alarm system is needed.
The PSU510 has been tested to EN60950-1, EMC, LVD and received FCC verification.
Protection
The PSU series power supplies are eqipped with a variety of protection functions:
◆ AC & DC overcurrent
◆ DC short circuit
◆ DC thermal overload
◆ Reverse battery polarity
Standard Features
◆ Filtered & regulated DC output
◆ Sealed lead acid battery charging capability (Battery not included, Maximum battery size 12VDC/7AH)
◆ Dimensions: 13”x 13” x 3 3/8” (330 x 330 x 86mm)
◆ Special Feature: Field selectable 12 or 24VDC output

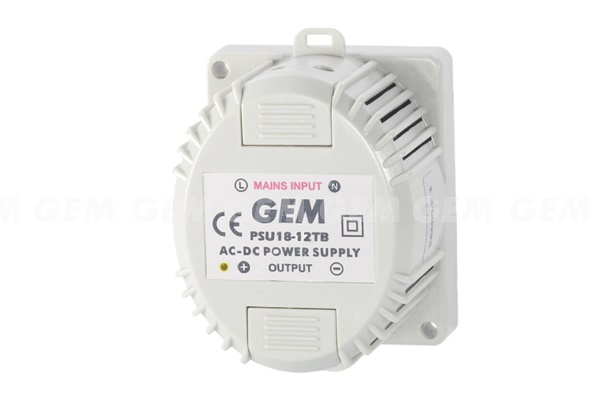

PSU18-12TB/PSU18-24TB Power Supplies
The GEM family of PSU series power supplies is specifically designed to support electrified locks and access control systems. It can serve as an uninterruptible power source that
provides emergnecy power when the input power fails. The PSU series is available with various functions for different applications.
The PSU18 is a mini switching power supply with universal AC input for a variety of applications
Specifications
◆ Input Voltage: 100~240VAC, 50/60Hz
◆ Output Voltage:
- PSU18-12TB: 1A/12VDC
- PSU18-24TB: 0.5A/24VDC
◆ Status LED: Power
◆ Dimensions: 2 3/16” x 1 7/8” x 1 9/16” (55 x 48 x 40mm)
◆ Special Feature: Mini power supply

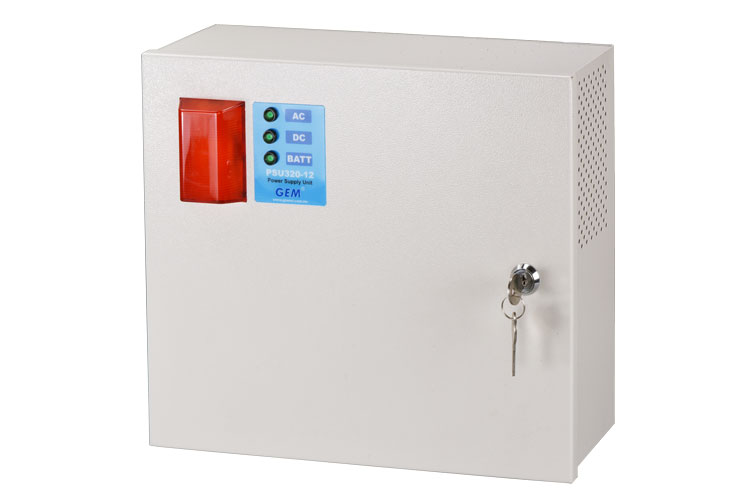

PSU320 Power Supplies
The GEM family of PSU series power supplies is specifically designed to support electrified locks and access control systems. It can serve as an uninterruptible power source that
provides emergnecy power when the input power fails. The PSU series is available with various functions for different applications.
The PSU320 series is a multi-functional controller ideal for use where an interface with a fire alarm system is needed. The PSU320 also includes a built-in alarm and red flashing light on the enclosure cover for emergency alert.
Protection
The PSU series power supplies are eqipped with a variety of protection functions:
◆ Low battery voltage
◆ AC & DC overcurrent
◆ DC short circuit
◆ DC thermal overload
◆ Reverse battery polarity
Standard Features
◆ Filtered & regulated DC output
◆ Sealed lead acid battery charging capability (Battery not included, Maximum battery size 12VDC/7AH)
